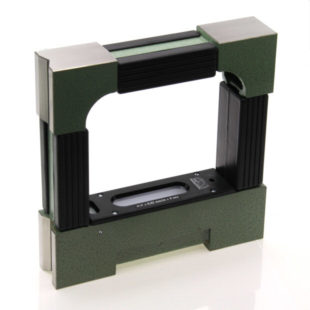

Engineers Level » Frame Levels » 67MR-0.02-200 - Magnetic Frame Level, 200x200mm long, sens. 0.02mm/m

Calibration Instructions (pdf 39 KB) 67MR-0.02-200 – Magnetic Frame Level, 200x200mm long, sens. 0.02mm/m

67MR-0.02-200 – Magnetic Frame Level, 200x200mm long, sens. 0.02mm/m
67MR-0.02-200 – Magnetic Frame Level, 200x200mm long, sens. 0.02mm/m
67MR-0.02-200 – Magnetic Frame Level, 200x200mm long, sens. 0.02mm/m
123

Features

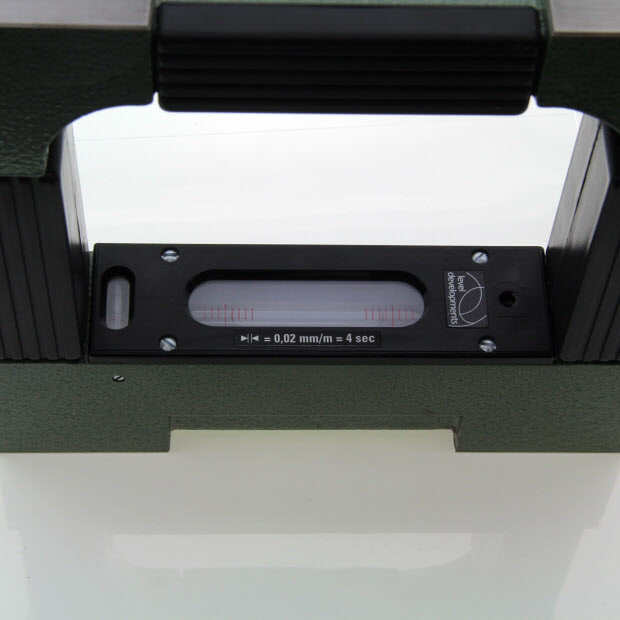

  • Sensitivity 1 division = 0.02mm/m
  • Optimised vial quality gives fast settling time.
  • Stable over a wide temperature range and resistant to shock
  • Magnetic vertical precision ground 'V' surface
  • Calibration certificates available to BS958 and DIN877

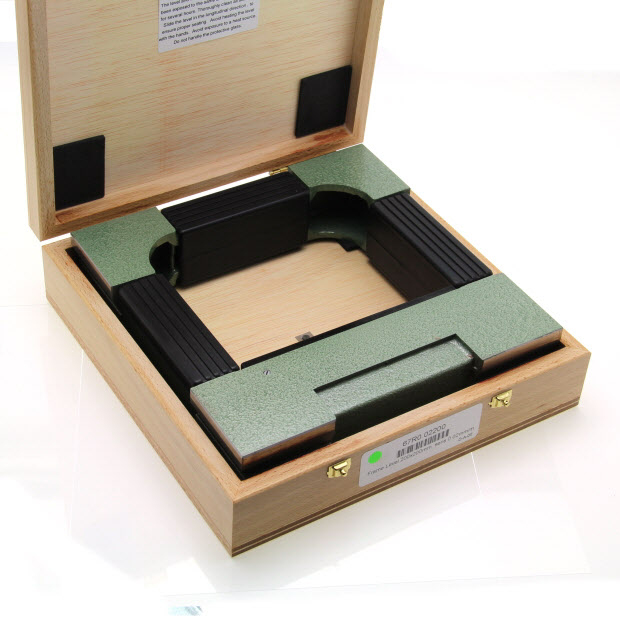

  • Supplied in a protective box with adjustment key

Applications

  • Machine tool / Work piece / Printing machine levelling

Product Specification

Parameter Value Unit
Length 200 mm
Height 200 mm
Width 40 mm
Sensitivity Per Division 0.02 mm/m
Cross Vial Yes -
Base Style Flat and V -
Magnetic Yes -
Dimension Value Unit
Length 200 mm
Width 40 mm
Height 200 mm
Weight 3.8 Kilograms
Parameter Value Unit
Operational Temperature Range 0 to 40 °C
Storage Temperature Range -20 to 70 °C
