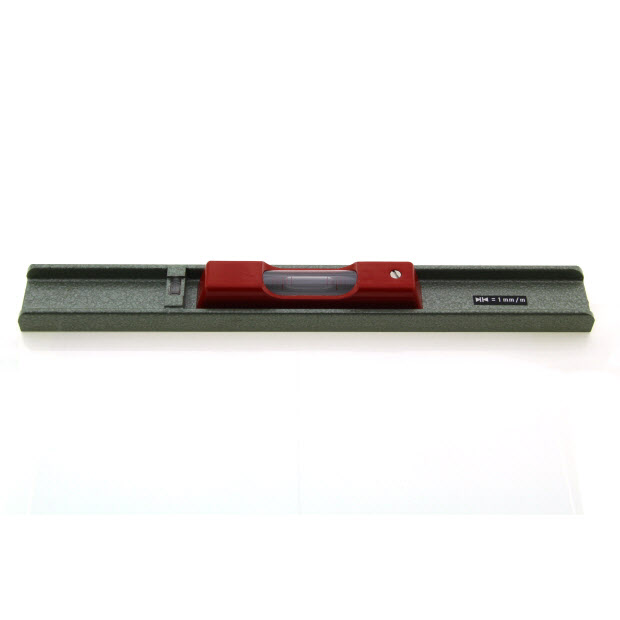

114-0.05-250 – Engineers workshop level, 250mm long, sens. 0.05mm/m (10")

114-0.05-250 – Engineers workshop level, 250mm long, sens. 0.05mm/m (10")
114-0.05-250 – Engineers workshop level, 250mm long, sens. 0.05mm/m (10")
12

Features

  • Low Cost Engineers workshop level

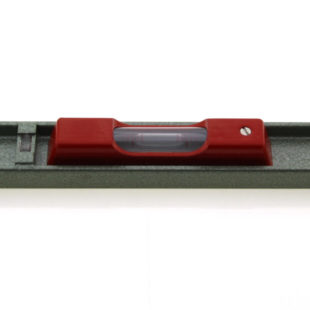

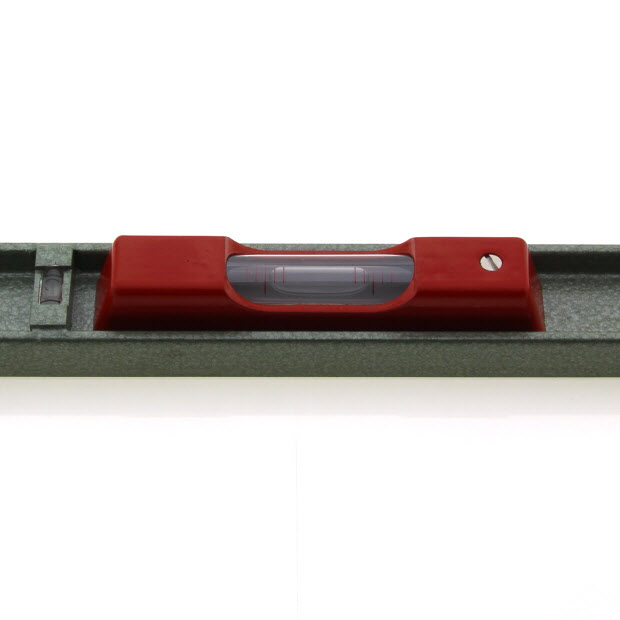

  • Precision ground glass main vial and bent glass cross vial
  • Cast iron base with ground flat and 'V' surfaces
  • Sensitivity; 1 division = 0.05mm/m
  • Magnetic base version available
  • Certification can be supplied to BS958 and DIN877
  • Supplied in a protective cardboard box
  • Repair and re-calibration service for these and other types of precision levels.

Applications

  • Machine levelling

Product Specification

Parameter Value Unit
Length 250 mm
Height 23 mm
Width 28 mm
Sensitivity Per Division 0.05 mm/m
Cross Vial No -
Base Style Flat and V -
Magnetic No -
Dimension Value Unit
Length 250 mm
Width 28 mm
Height 23 mm
Weight 469 Grams
Parameter Value Unit
Operational Temperature Range 0 to 40 °C
Storage Temperature Range -20 to 70 °C
