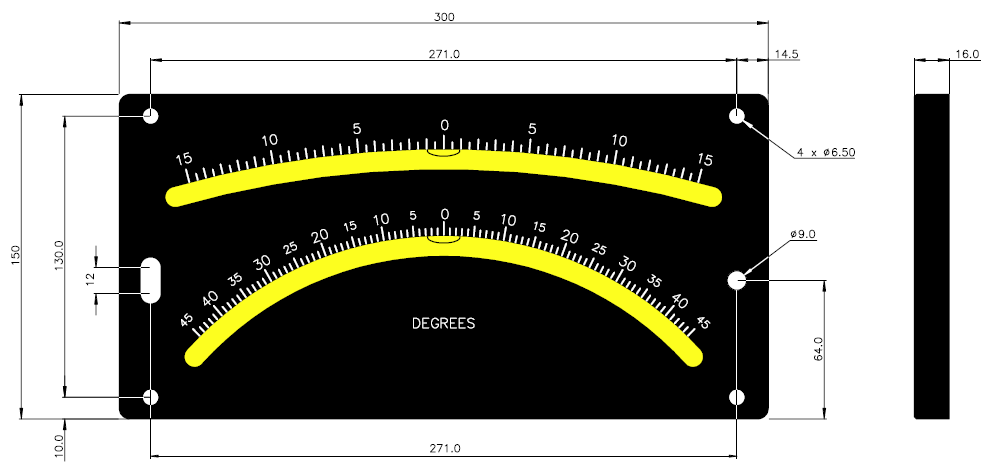

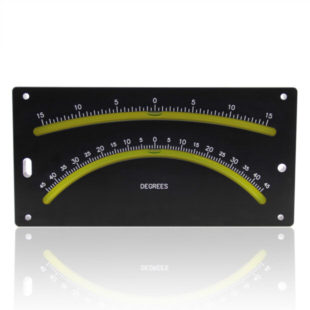

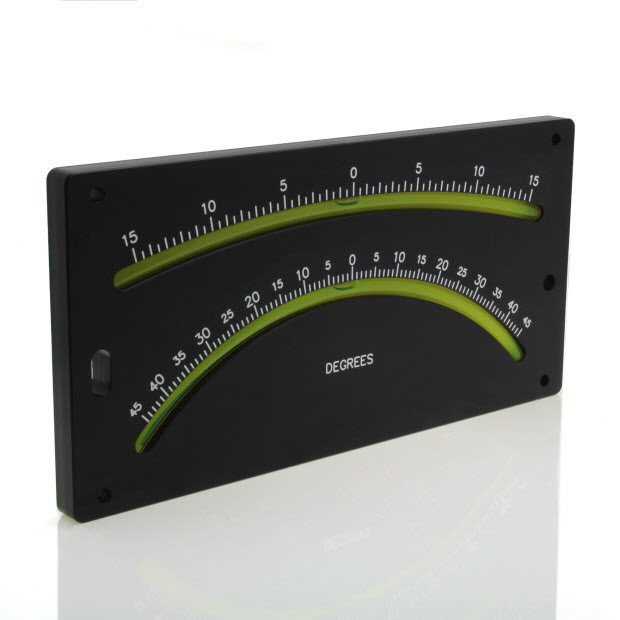

Product Drawing (pdf 32 KB) 5500/1 – Double vial bubble inclinometer (±15° and ±45°)
Features
- Solid machined acetal housing
- Range of use ±15° and ±45°
- Precision glass vial
- Yellow/Green liquid
- Waterproof finish
Product Specification
Parameter | Value | Unit |
---|---|---|
Length | 150 | mm |
Range | ±15° and ±45° | - |
Resolution | 0.5° | - |
Accuracy | 10% | - |
Height | 16 | mm |
Width | 300 | mm |
Measuring Type | Bubble | - |
Case Material | Acetal | - |
Vial Material | Glass | - |
Mounting Method | Screw fixing (vertical surface) | - |
Bubble Size | 18 | mm |
Expansion Chamber | No | - |
Light | none | - |
Dimension | Value | Unit |
---|---|---|
Length | 150 | mm |
Width | 300 | mm |
Height | 16 | mm |
Weight | 995 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -10 to 40 | °C |
Storage Temperature Range | -20 to 50 | °C |
