Inclinometers » Ball Bubble Inclinometers » 5731/1 - Inclinometer, ±15°, bubble type with exp chamber

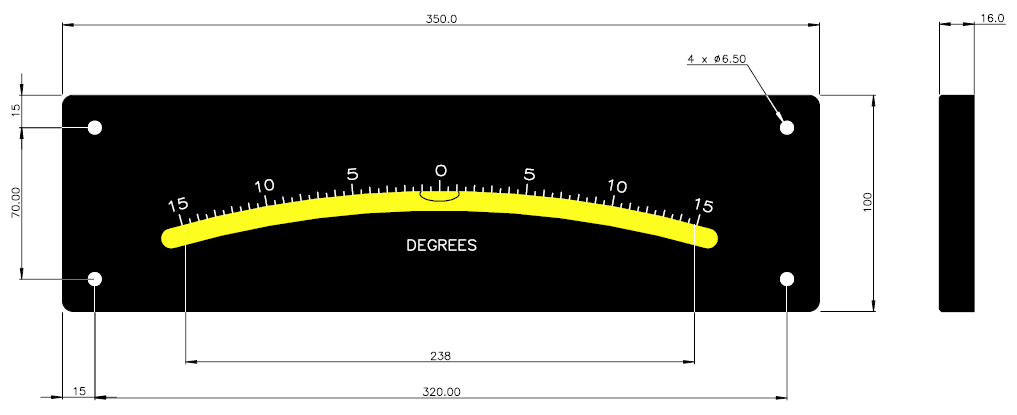

Product Drawing (pdf 37 KB) 5731/1 – Inclinometer, ±15°, bubble type with exp chamber

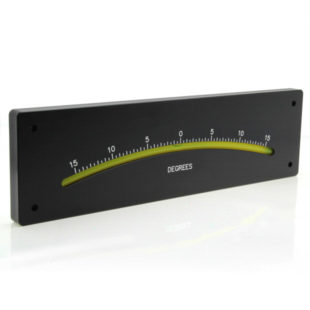

5731/1 – Inclinometer, ±15°, bubble type with exp chamber

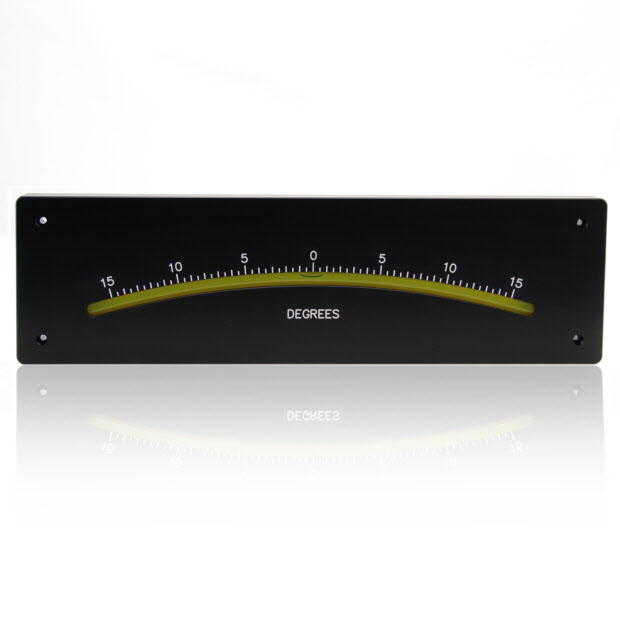

5731/1 – Inclinometer, ±15°, bubble type with exp chamber
12

Features

  • Solid machined acetal housing
  • Range of use ±15°
  • Precision glass vial
  • Yellow/Green liquid
  • Waterproof finish
  • Expansion Chamber

Product Specification

Parameter Value Unit
Length 350 mm
Range ±15° -
Resolution 0.5° -
Accuracy 10% -
Height 100 mm
Width 16 mm
Measuring Type Bubble -
Case Material Acetal -
Vial Material Glass -
Mounting Method Screw fixing (vertical surface) -
Bubble Size 10 mm
Expansion Chamber Yes -
Light none -
Dimension Value Unit
Length 350 mm
Width 16 mm
Height 100 mm
Weight 785 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -20 to 70 °C
