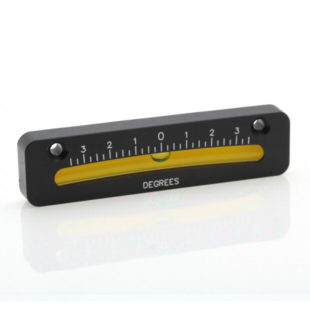

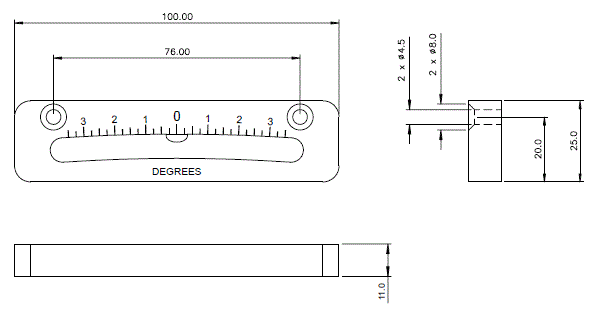

Product Drawing (pdf 322 KB) 5789/1 – Bubble Inclinometer, 100x25mm, ±3°
Features
- Precision bent glass vial
- Range of use ±3°
- Wide temperature range
- High visibility bubble
- Green liquid.
Applications
- Excavator tilt Indication
- Telescopic lift tilt indication
- Forklift tilt indication
Product Specification
Parameter | Value | Unit |
---|---|---|
Length | 100 | mm |
Range | ±3° | - |
Resolution | 0.25° | - |
Accuracy | 10% | - |
Height | 25 | mm |
Width | 11 | mm |
Measuring Type | Bubble | - |
Case Material | ABS | - |
Vial Material | Glass | - |
Mounting Method | Screw fixing (vertical surface) | - |
Bubble Size | 8.5 | mm |
Expansion Chamber | No | - |
Light | none | - |
Dimension | Value | Unit |
---|---|---|
Length | 100 | mm |
Width | 11 | mm |
Height | 25 | mm |
Weight | 20 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 70° | °C |
Storage Temperature Range | -40 to 70° | °C |
