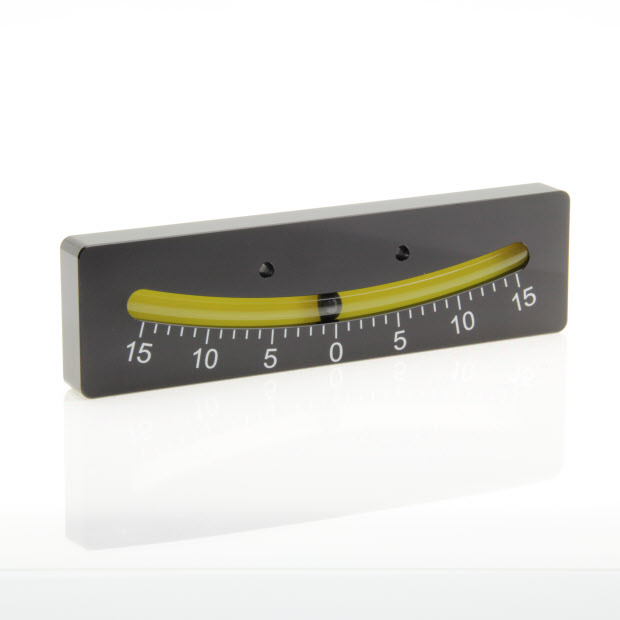

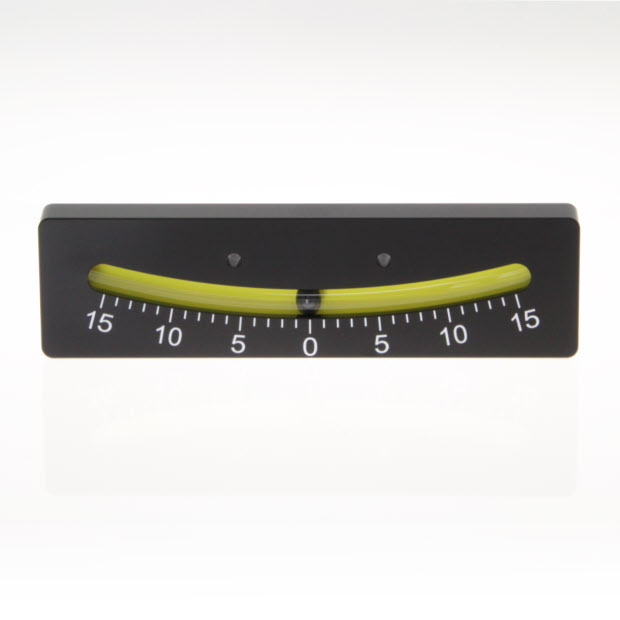

Product Drawing (pdf 292 KB) 6130/1 – Ball inclinometer, 180x50mm, ±15°
Features
- Wide temperature range -20 to 60°
- Range ±15 Degrees
- Precision vial with black ceramic ball
- Robust machined aluminium housing
Applications
- Off road vehicle tilt
- Grass cutting machinery
- Crane boom angle measurement
Product Specification
Parameter | Value | Unit |
---|---|---|
Length | 180 | mm |
Range | ±15° | - |
Resolution | 1° | - |
Accuracy | 10% | - |
Height | 50 | mm |
Width | 15.5 | mm |
Measuring Type | Ball | - |
Case Material | Black anodised Aluminium | - |
Vial Material | Glass | - |
Mounting Method | Screw fixing (vertical surface) | - |
Ball Diameter | 7 | mm |
Expansion Chamber | No | - |

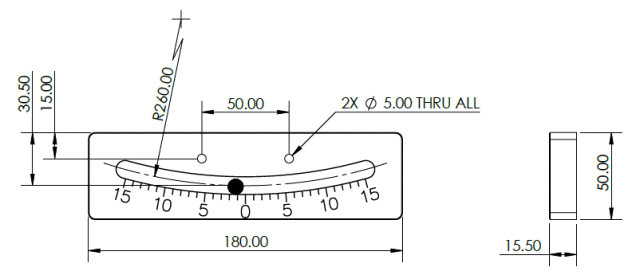

Dimension | Value | Unit |
---|---|---|
Length | 180 | mm |
Width | 15.5 | mm |
Height | 50 | mm |
Weight | 315 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 60 | °C |
Storage Temperature Range | -40 to 60 | °C |
