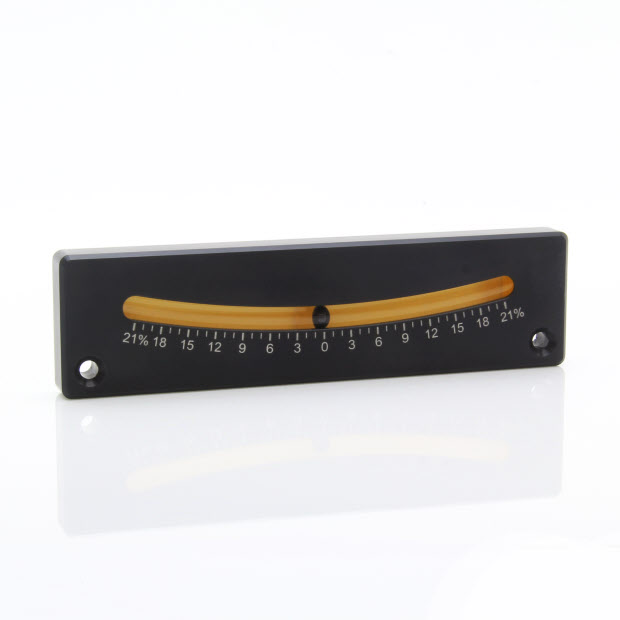

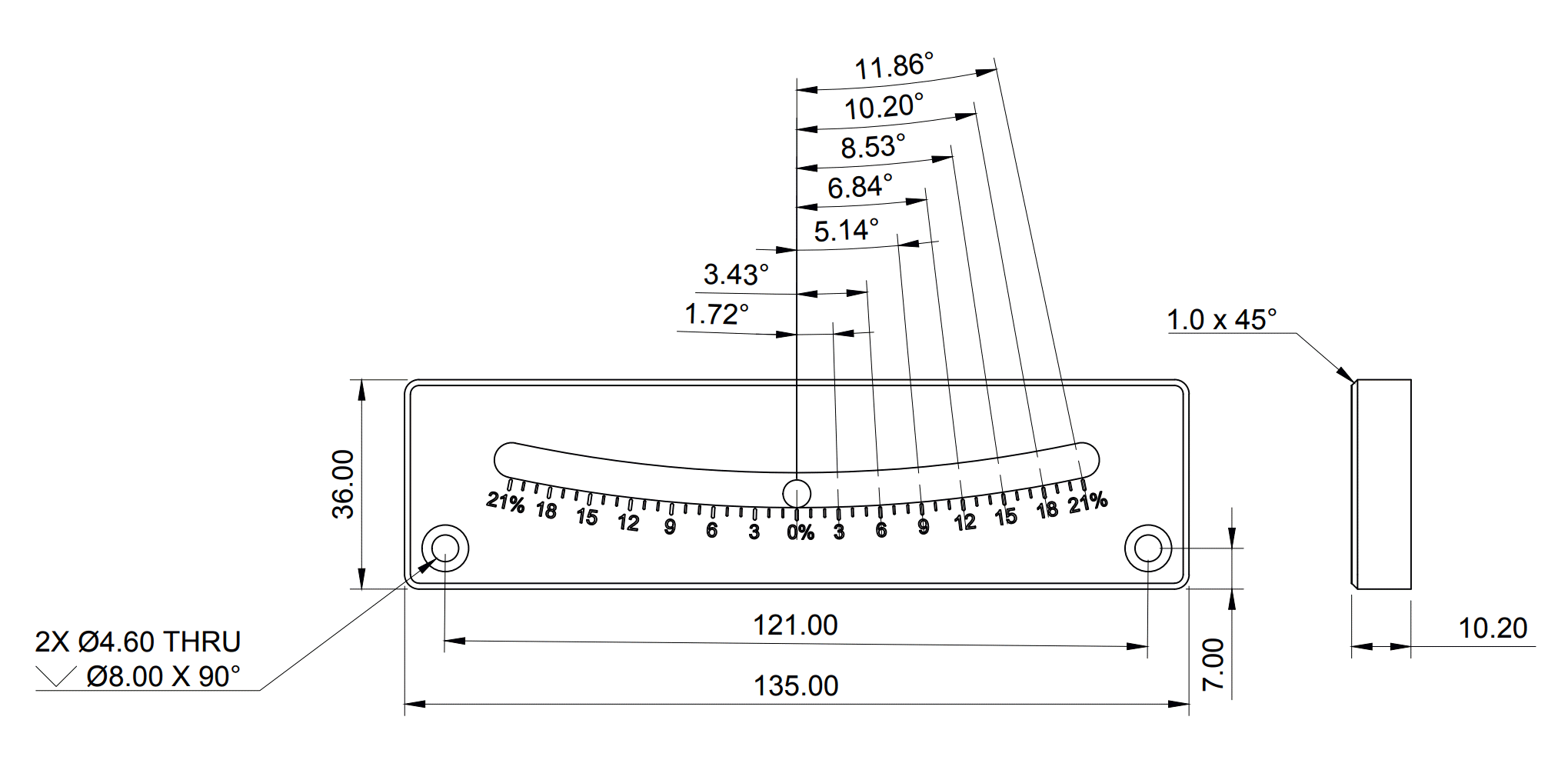

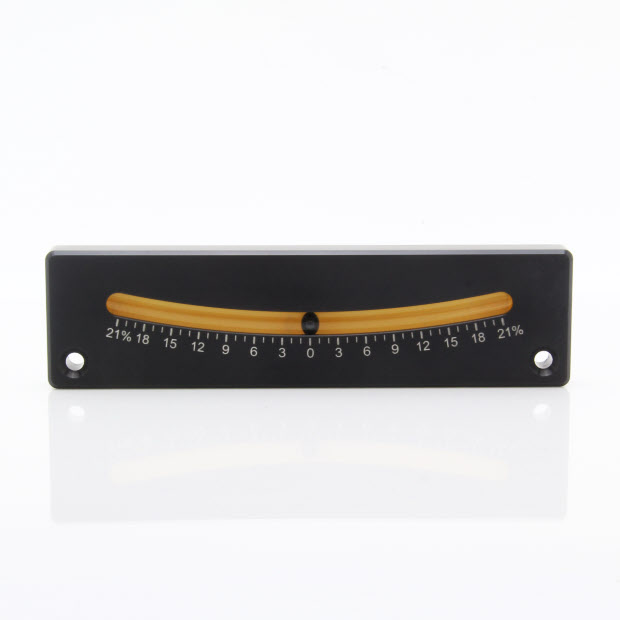

Product Drawing (pdf 186 KB) 6263/1 – Ball inclinometer with Superluminova PL pigment, 135x36x10.2mm, ±21%
Features
- Wide temperature range -20 to 60°
- Range ±21% / ±11.86°
- High grade Superluminova PL pigment on backing and text
- Precision vial with black ceramic ball
- Robust machined aluminium housing
Applications
- Off road vehicle tilt
- Grass cutting machinery
- Crane boom angle measurement
Product Specification
Parameter | Value | Unit |
---|---|---|
Length | 135 | mm |
Range | ±11.86° | - |
Resolution | 1° | - |
Accuracy | 10% | - |
Height | 36 | mm |
Width | 10.2 | mm |
Measuring Type | Ball | - |
Case Material | Black anodised Aluminium | - |
Vial Material | Glass | - |
Mounting Method | Screw fixing (vertical surface) | - |
Ball Diameter | 4.76 | mm |
Expansion Chamber | No | - |
Dimension | Value | Unit |
---|---|---|
Length | 135 | mm |
Width | 10.2 | mm |
Height | 36 | mm |
Weight | 315 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 60 | °C |
Storage Temperature Range | -40 to 60 | °C |
