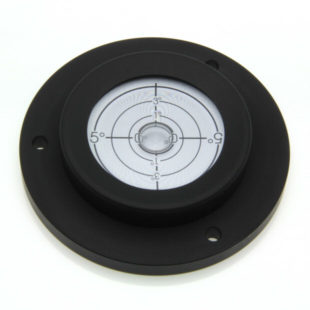

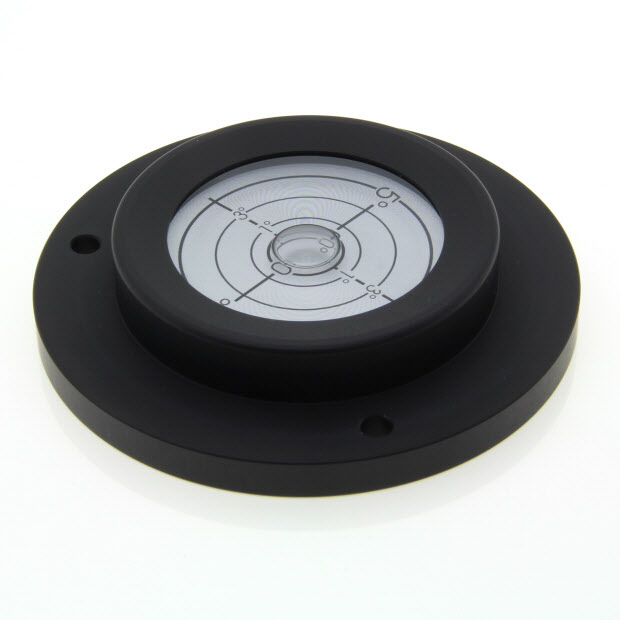

Inclinometers » Circular Inclinometer Levels » 5229/4 - Circular level, heavy duty, Ø100mm, range 0-5°

Product Drawing (pdf 177 kB) 5229/4 – Circular level, heavy duty, Ø100mm, range 0-5°

Features

  • Sensitivity 1 degree per 3.2mm bubble movement
  • Waterproof finish
  • Solid Aluminium Machined Housing
  • High strength plastic vial
  • Black anodised finish
  • Extremely durable and robust

Applications

  • Mobile crane levelling
  • Platform levelling
  • Industrial vehicle levelling

Product Specification

Parameter Value Unit
Diameter 100 mm
Sensitivity 1 degree per 3.2mm
Vial Material Acrylic -
Case Material Aluminium -
Finish Black Anodised -
Mounting Method Screw down or freestanding -
Bubble Size 12 mm
Ring Diameter mm
Ring Colour Black -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Overall Diameter 100 mm
Body Diameter 70 mm
Overall Height 20 mm
Flange Height 8 mm
Pitch Centre Diameter For Mounting Holes 85 mm
Hole Diameter 5.3 mm
Weight 195 Grams
Parameter Value Unit
Operational Temperature Range -10 to 50 °C
Storage Temperature Range -20 to 70 °C
