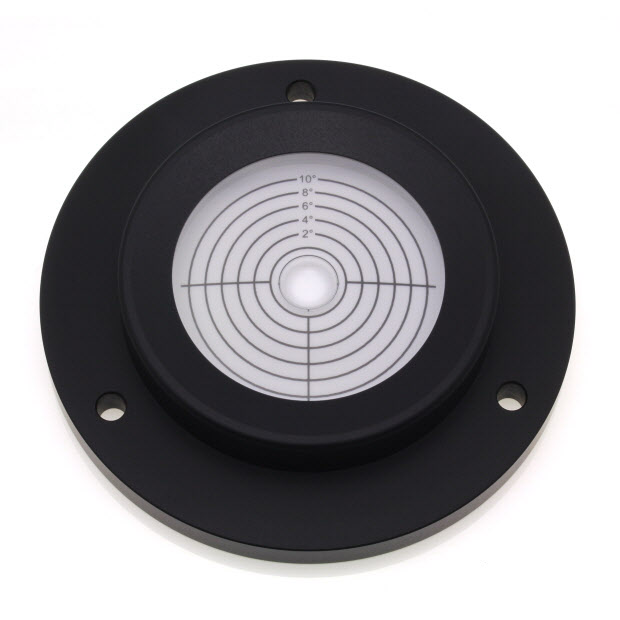

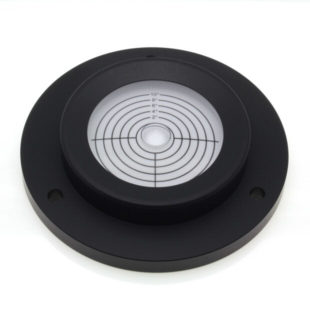

Product Datasheet (pdf 429 KB) 5229/5 – Circular level, heavy duty, Ø100mm, measurment range ±10°
Features
- Sensitivity 1 degree per 3.2mm
- Waterproof finish
- Solid Aluminium Machined Housing
- High strength plastic vial
- Black anodised finish
- Extremely durable and robust
Applications
- Mobile crane levelling
- Platform levelling
- Industrial vehicle levelling
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 100 | mm |
Sensitivity | 1 | degree per 3.2mm |
Vial Material | Acrylic (PMMA) | - |
Case Material | Aluminium | - |
Finish | Black Anodised | - |
Mounting Method | Screw down or free standing | - |
Bubble Size | 12.5 | mm |
Ring Colour | Black | - |
Liquid Colour | Clear | - |
Light | none | - |

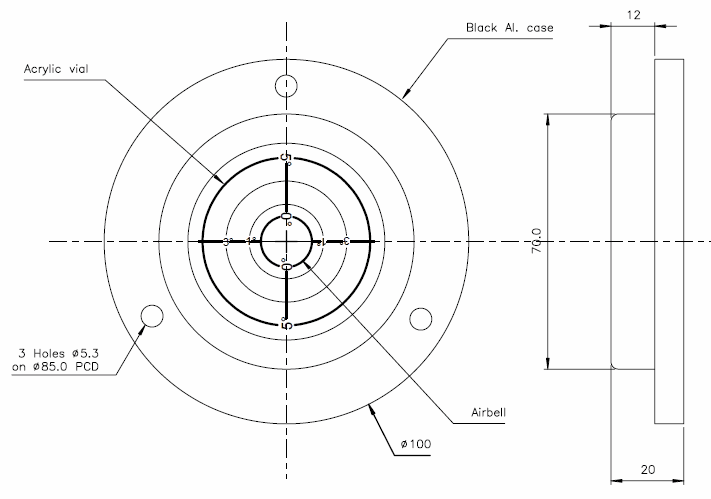

Dimension | Value | Unit |
---|---|---|
Overall Diameter | 100 | mm |
Body Diameter | 70 | mm |
Overall Height | 20 | mm |
Flange Height | 8 | mm |
Pitch Centre Diameter For Mounting Holes | 85 | mm |
Hole Diameter | 5.3 | mm |
Weight | 195 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -10 to 50 | °C |
Storage Temperature Range | -20 to 70 | °C |
