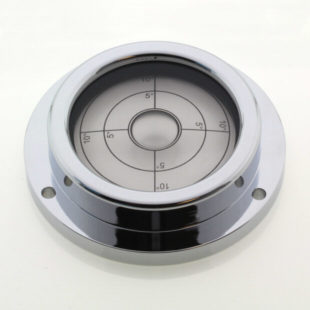

Product Drawing (pdf 165 KB) CG70/10DEG – Circular level 70mm dia. with 0-5-10° vial, Chrome finish
Features
- Chrome plated aluminium housing
- Precision glass vial
- Sensitivity 5° per 6.5mm bubble movement
- High contrast bubble
- Wide temperature range
Applications
- Precision Instrument Levelling
- High precision weighing scales
- Robotic systems levelling
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 69.6 | mm |
Sensitivity | 5 | degrees per 6.5mm |
Vial Material | Glass | - |
Case Material | Aluminium | - |
Finish | Chrome Plated | - |
Mounting Method | Screw down or free standing | - |
Bubble Size | 13.5 | mm |
Ring Diameter | 14.5 | mm |
Ring Colour | Black | - |
Liquid Colour | Clear | - |
Light | none | - |

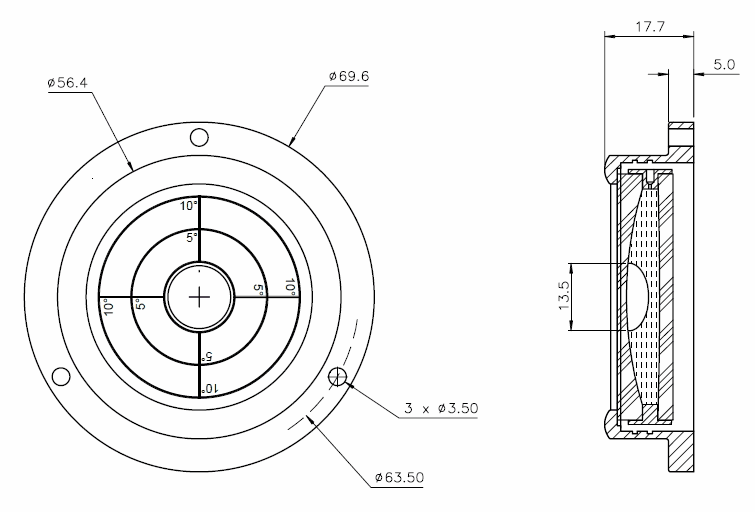

Dimension | Value | Unit |
---|---|---|
Overall Diameter | 69.6 | mm |
Body Diameter | 56.4 | mm |
Overall Height | 17 | mm |
Flange Height | 6 | mm |
Pitch Centre Diameter For Mounting Holes | 63.5 | mm |
Hole Diameter | 3.5 | mm |
Weight | 92 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -15 to 65 | °C |
Storage Temperature Range | -30 to 70 | °C |
