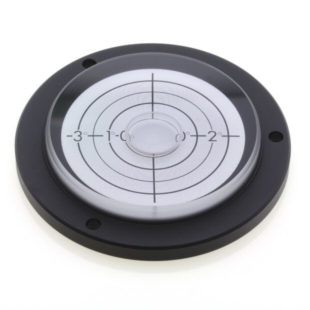

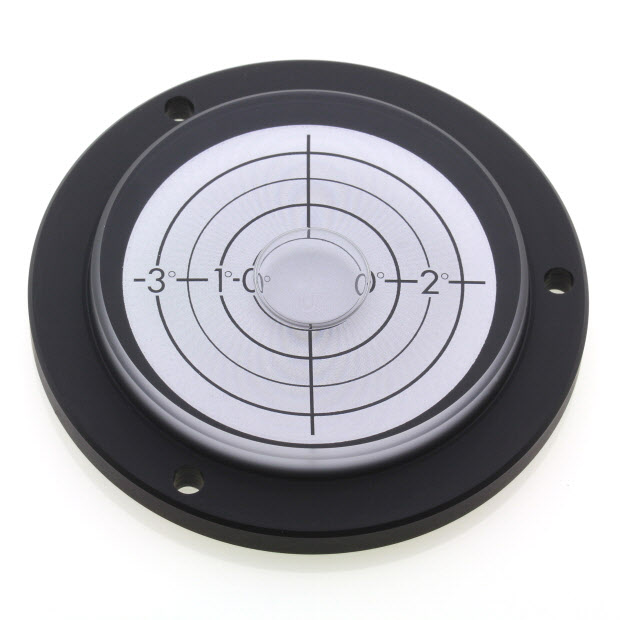

Inclinometers » Circular Inclinometer Levels » PVF80/3 - Plastic circular level, 80mm dia., 0-3deg

Product Drawing (pdf 124 kB) PVF80/3 – Plastic circular level, 80mm dia., 0-3deg

Features

  • Measure level and angle up to 3°
  • Waterproof finish
  • High strength plastic vial
  • Black base give good bubble contrast

Applications

  • Mobile crane levelling
  • Platform levelling
  • Industrial vehicle levelling

Product Specification

Parameter Value Unit
Diameter 80 mm
Sensitivity 1 degree per division
Vial Material Polycarbonate -
Case Material Polycarbonate -
Mounting Method Screw down or free standing -
Bubble Size 16 mm
Ring Diameter 14 mm
Ring Colour Black -
Liquid Colour Clear -

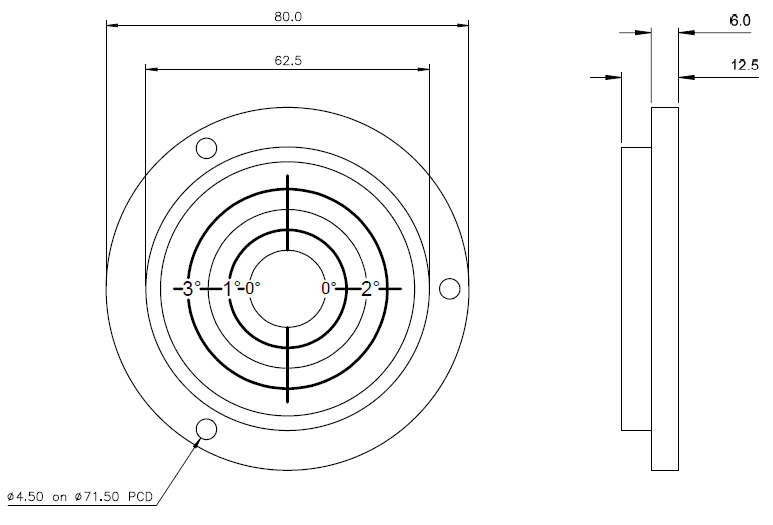

Dimension Value Unit
Overall Diameter 80 mm
Body Diameter 62.5 mm
Overall Height 12.5 mm
Flange Height 6 mm
Pitch Centre Diameter For Mounting Holes 71.5 mm
Hole Diameter 4.5 mm
Weight 53 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
