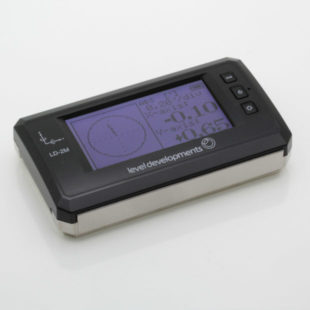

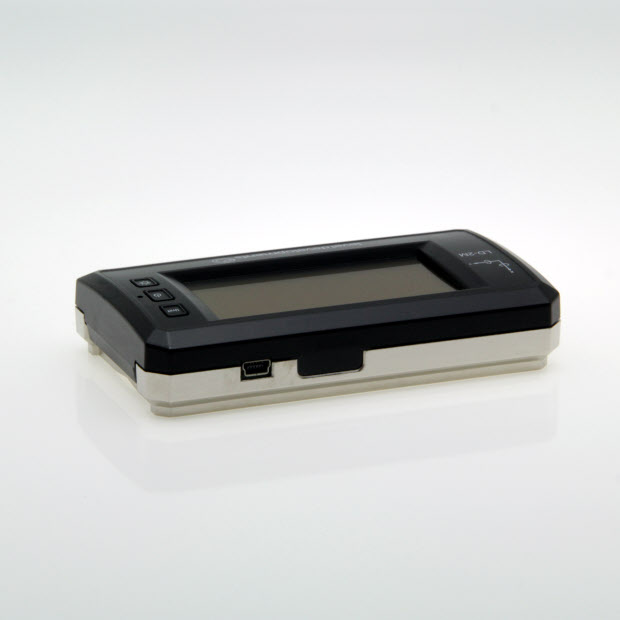

Product Datasheet (pdf 1 MB) LD-2M – Dual axis inclinometer with digital display, ±30°

Features

  • Dual axis (x-y) or single axis (x) operation
  • High accuracy, 0.01° resolution, ±30° range
  • Digital graphical LCD display with back light
  • RS232 digital interface

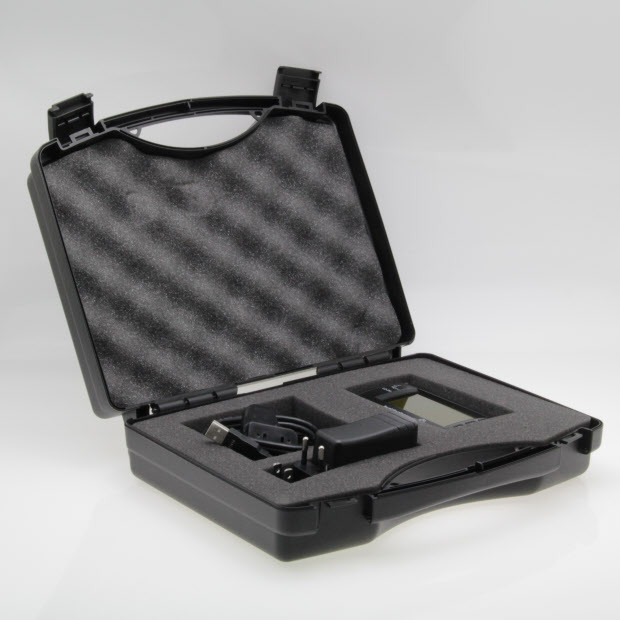

  • Built in Li-Ion battery (charger supplied)
  • Measurement scale switchable between degrees or mm/m

Applications

  • Workpiece angle setting
  • Machine levelling

Product Specification

Parameter Value Unit
Number of Axis 2 -
Range ±30 °
Resolution 0.01 °
Accuracy at 20°C 0.05 Or 1% of measured value °
Display Type Backlit LCD -
Display Output RS232 -
Output Format 9600, 8, N, 1 -
Power Source Internal Battery -
Frequency Response 1Hz Hz
Technology Precision MEMS -
Parameter Value Unit
Battery Life 100 Hours
Dimension Value Unit
Weight 810 Grams
Sensor Size - mm

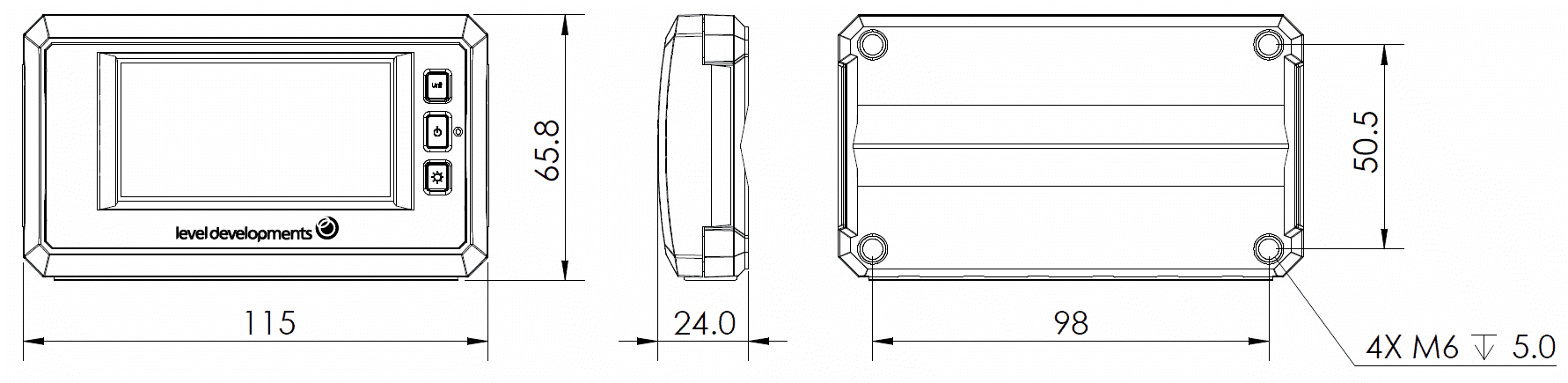

Display Size 115x65.8x24 mm
Display Weight 250 g

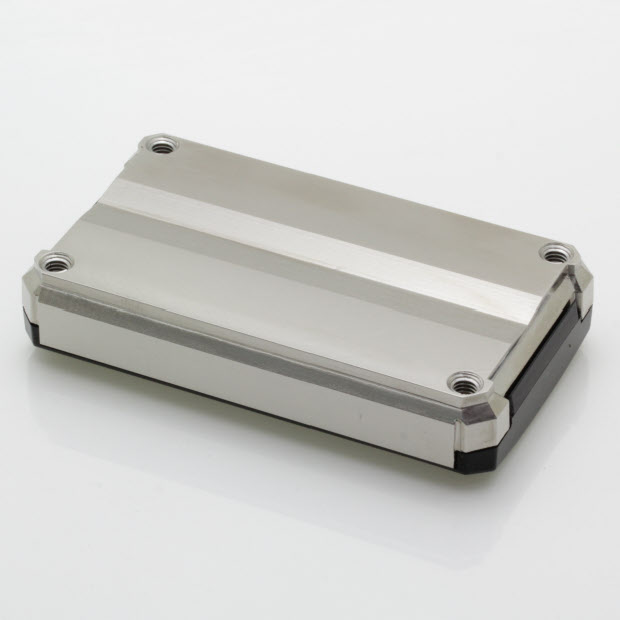

Display Case Material Anodised Aluminium -
Parameter Value Unit
Operational Temperature Range 0 to 45 °C
Storage Temperature Range -40 to 85 °C
Sensor Seal Rating - -
Display Seal Rating IP54 -
