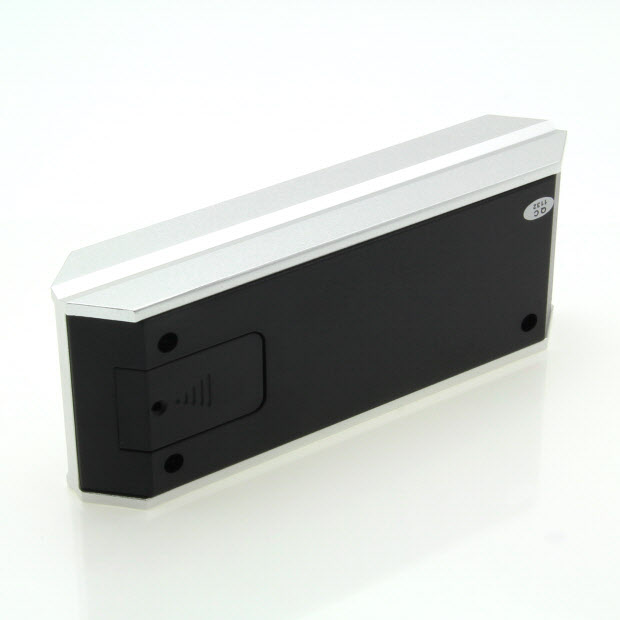

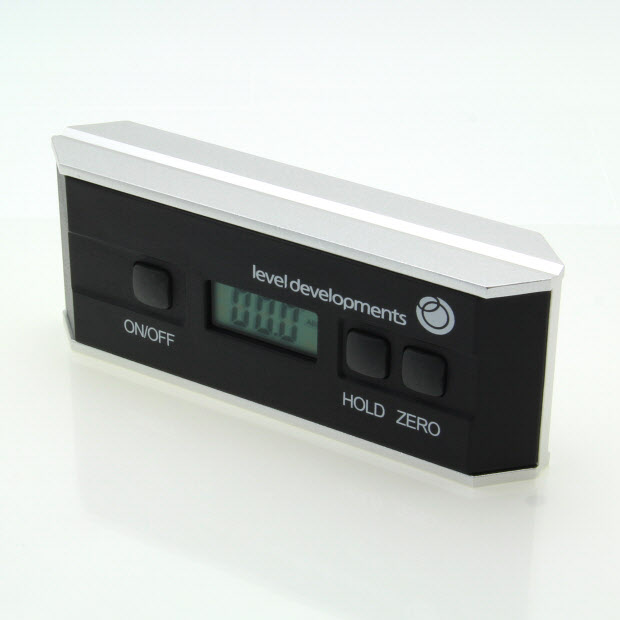

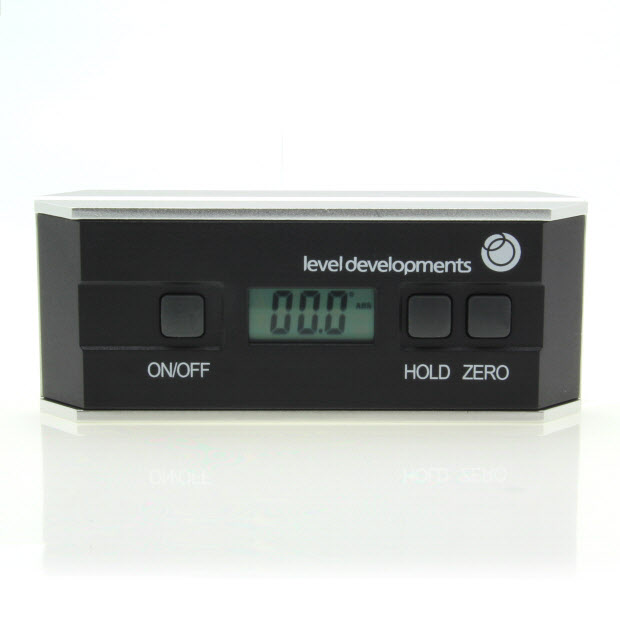

Inclinometers » Digital Inclinometers » LD360 - Electronic inclinometer, range 360°, resolution 0.1°

Product Datasheet (pdf 185 KB) LD360 – Electronic inclinometer, range 360°, resolution 0.1°

Features

  • Low cost alternative to the PRO360
  • Measures over full 360° range
  • Standard reference = 0.0°

Applications

  • Drive shaft alignment
  • Setting control surfaces on aircraft
  • Drainage angles and run off slopes
  • Grader and tractor work alignment
  • Platform monitoring
  • Machine tool setting

Product Specification

Parameter Value Unit
Number of Axis 1 -
Range 360 °
Resolution 0.1 °
Accuracy at 20°C 0.2 °
Output Format - -
Power Source CR2032 (3V) Lithium -
Frequency Response 1 Hz
Technology Magnetic encoder -
Parameter Value Unit
Battery Life 2000 Hours
Dimension Value Unit
Weight 350 Grams
Sensor Size - mm
Display Size 150x60x32 mm
Display Weight 350 g
Display Case Material Aluminium & ABS -
Parameter Value Unit
Operational Temperature Range 0 to 50 °C
Storage Temperature Range -20 to 65 °C
Sensor Seal Rating - -
Display Seal Rating IP54 -
Certification   Download
RoHS CertificateDownload Certificate
REACH CertificateDownload Certificate
Conflict Minerals CertificateDownload Certificate

Other Documentation
