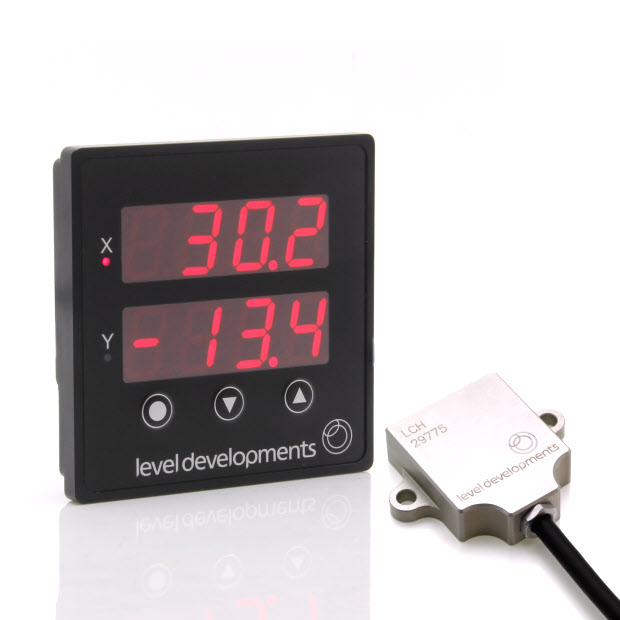

Inclinometers » Digital Inclinometers » PDTS-LCH-45 - Dual Axis ±45° LCH Inclinometer with Panel Mount Tilt Switch Display

Product Brochure (pdf 382 KB) PDTS-LCH-45 – Dual Axis ±45° LCH Inclinometer with Panel Mount Tilt Switch Display

Features

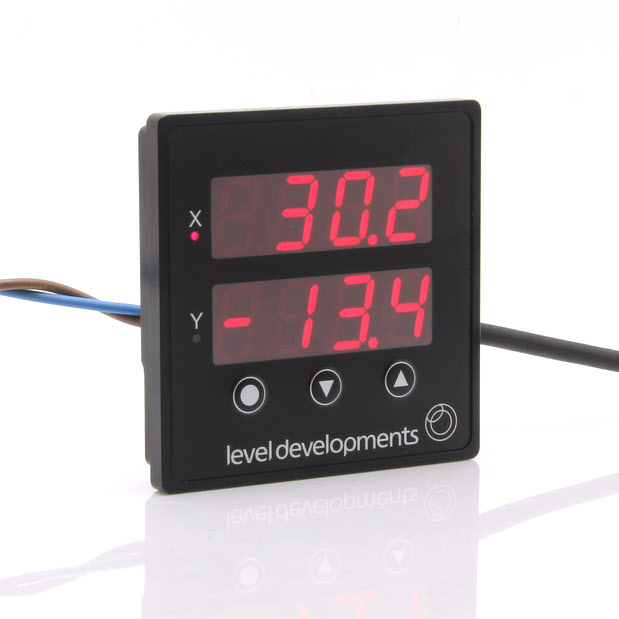

  • 4 Digit LED dual axis display, range ±45°.
  • Programmable alarm function with 2 individually programmable relay outputs
  • Display resolution adjustable with 0, 1, 2 or 3 decimal places

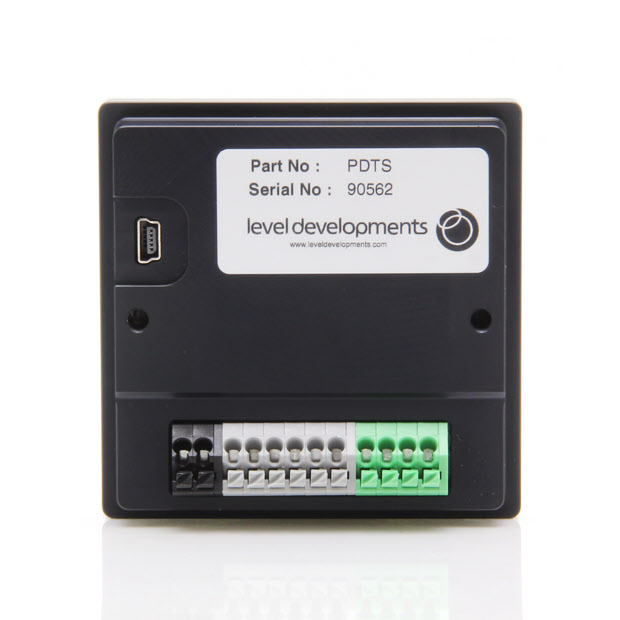

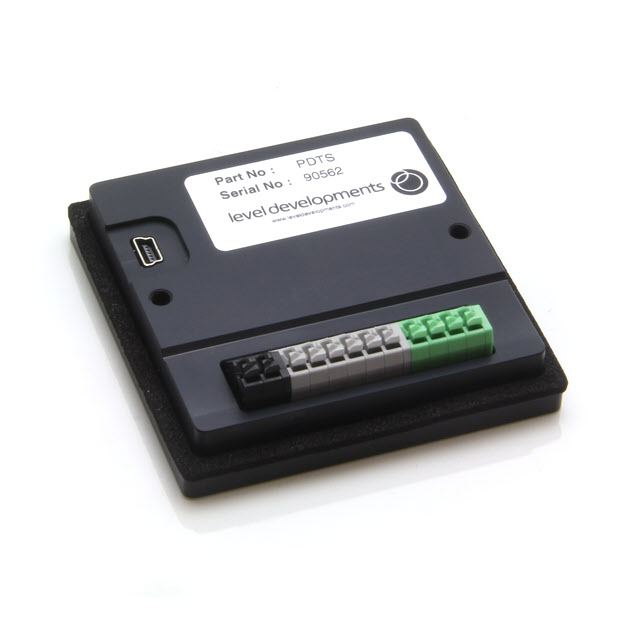

  • USB interface with free Windows based application for monitoring angle and configuration
  • Sensor sealed to IP67

Product Specification

Parameter Value Unit
Number of Axis 2 -
Range ±45 °
Resolution 0.05 °
Accuracy at 20°C ±0.3 °
Uncompensated Temp Error 0.01 ° / °C
Accuracy at -20 - 70°C ±1 °
Display Type 2 x 4 digit LED -
Display Output 2 x SPCO Relay and USB -
Output Format RS232 -
Power Source External DC supply -
Frequency Response 1 Hz
Technology MEMS -
Parameter Value Unit
Supply Voltage (min) 12 V
Supply Voltage (max) 30 V
Supply Current 150 mA
Dimension Value Unit
Weight 285 Grams

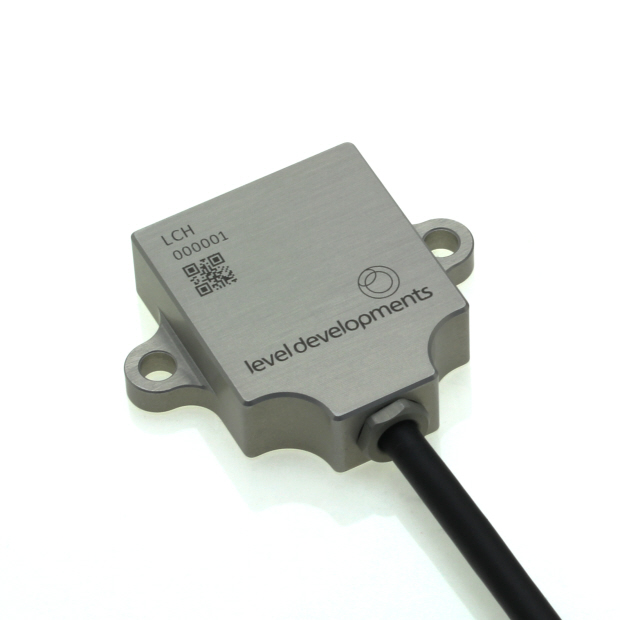

Sensor Size 46x43.5x13.5 mm
Sensor Weight 85 g
Sensor Case Material Anodised Aluminium -

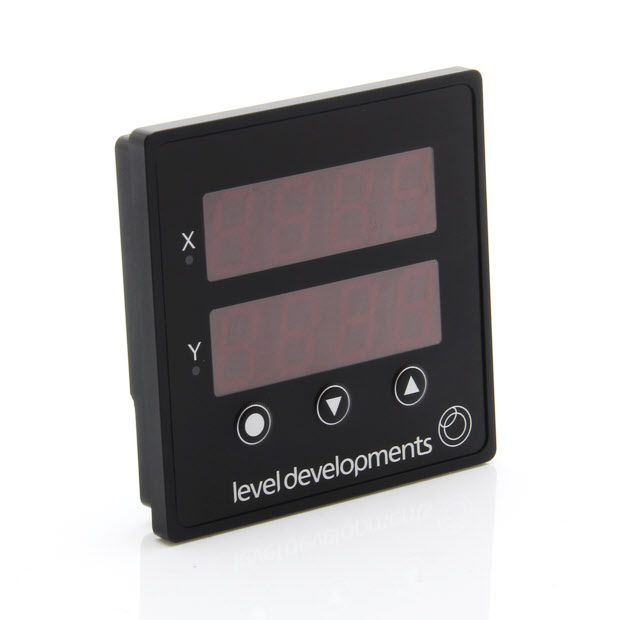

Display Size 72x72x23.5 mm
Display Weight 200 g
Display Case Material Anodised Aluminium -
Cable Length 2 m
Parameter Value Unit
Operational Temperature Range -40 to 85°C °C
Storage Temperature Range -40 to 85°C °C
Sensor Seal Rating IP67 -
Display Seal Rating IP65 (when panel mounted) -
