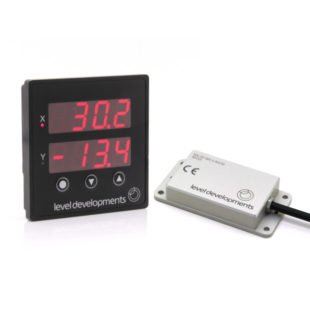

Product Brochure (pdf 375 KB) PDTS-SOLAR2-01 – Dual Axis ±30° SOLAR Inclinometer with Panel Mount Tilt Switch Display and 10m cable
Features
- 4 Digit LED dual axis display, range ±30°.
- Programmable alarm function with 2 individually programmable relay outputs
- Display resolution adjustable with 0, 1, 2 or 3 decimal places
- USB interface with free Windows based application for monitoring angle and configuration
- 10m PUR cable
- Sensor sealed to IP67
Product Specification
Parameter | Value | Unit |
---|---|---|
Number of Axis | 2 | - |
Range | ±30 | ° |
Resolution | 0.001 | ° |
Accuracy at 20°C | ±0.030 | ° |
Uncompensated Temp Error | 0.0015 | ° / °C |
Accuracy at -20 - 70°C | ±0.120 | ° |

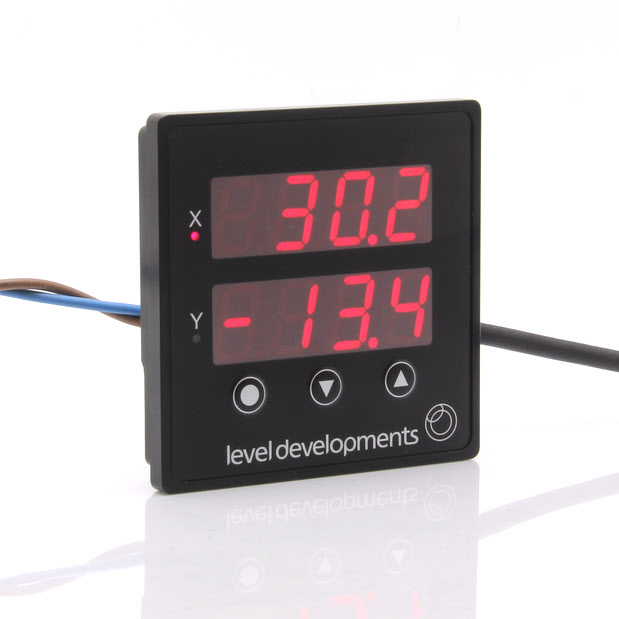

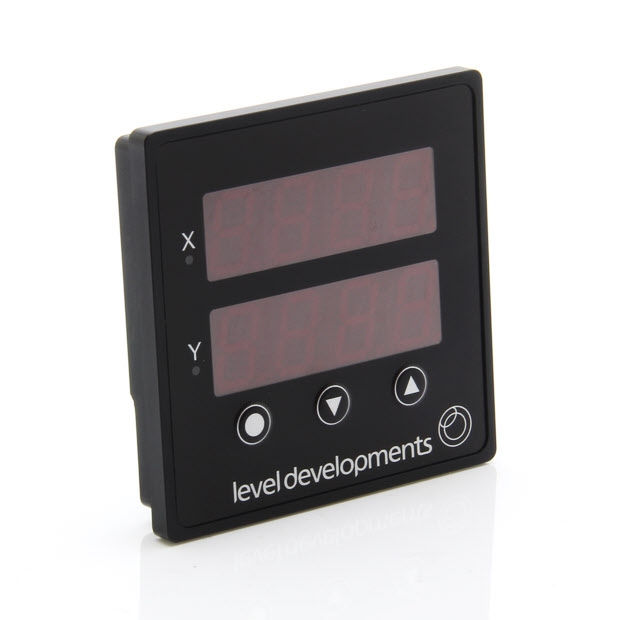

Display Type | 2 x 4 digit LED | - |
Display Output | 2 x SPCO Relay and USB | - |
Output Format | RS232 | - |
Power Source | External DC supply | - |
Frequency Response | 1 | Hz |
Technology | Precision MEMS | - |
Parameter | Value | Unit |
---|---|---|
Supply Voltage (min) | 12 | V |
Supply Voltage (max) | 30 | V |
Dimension | Value | Unit |
---|---|---|
Weight | 245 | Grams |

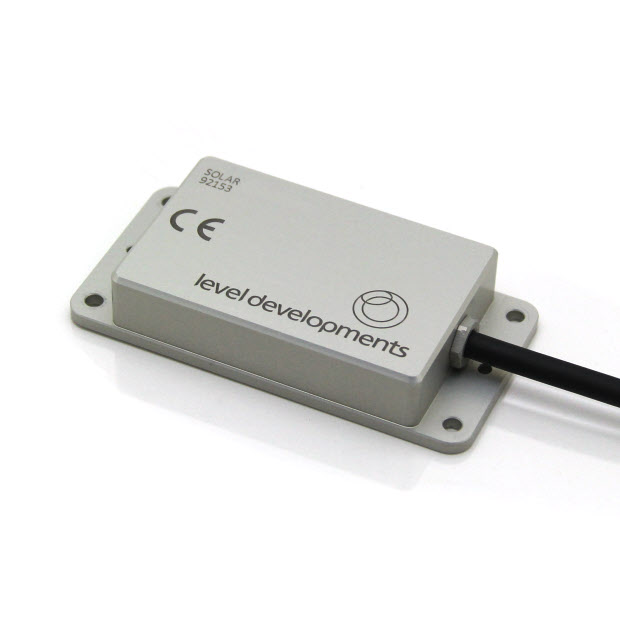

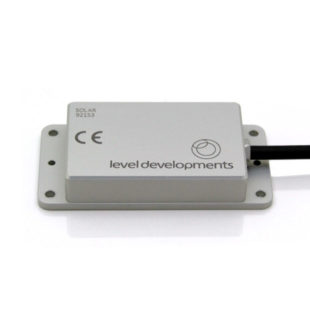

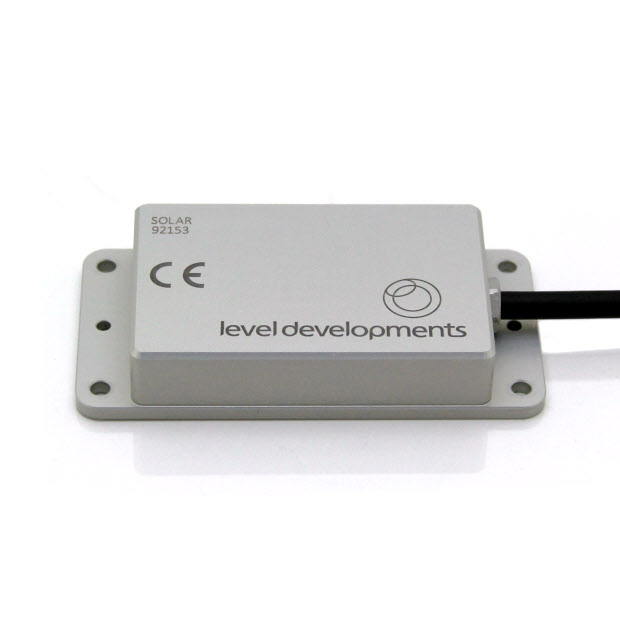

Sensor Size | 75x37.5x15 | mm |
Sensor Weight | 45 | g |
Sensor Case Material | Anodised Aluminium | - |

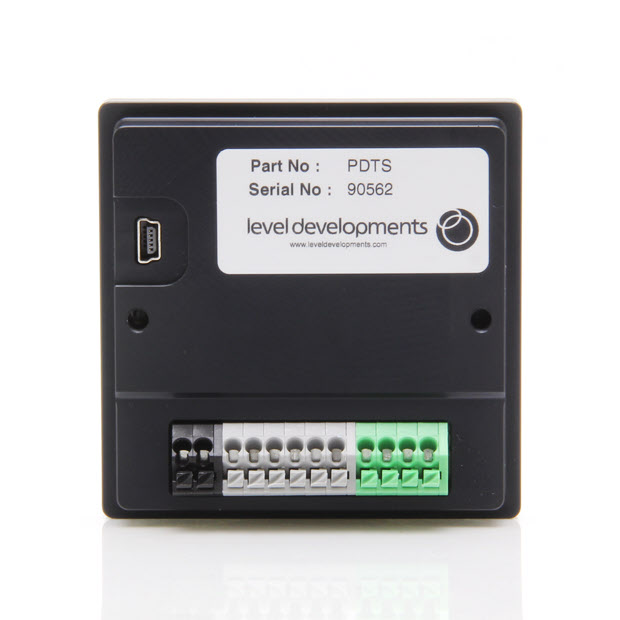

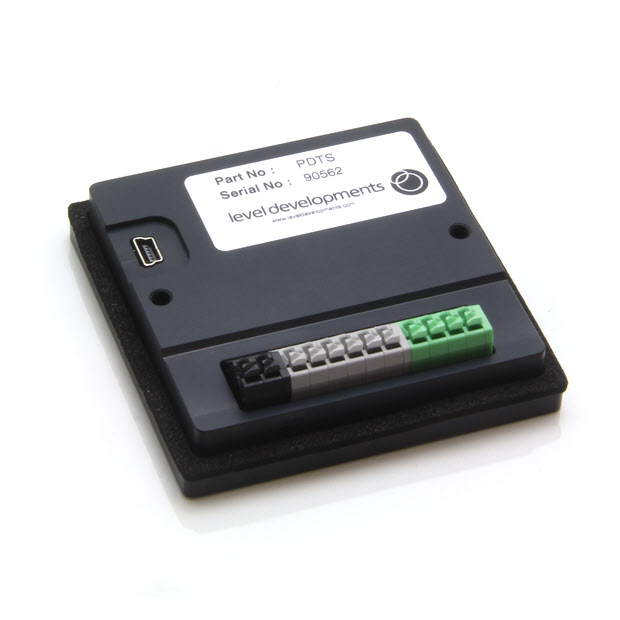

Display Size | 72x72x23.5 | mm |
Display Weight | 200 | g |
Display Case Material | Anodised Aluminium | - |
Cable Length | 10 | m |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -40 to 85°C | °C |
Storage Temperature Range | -40 to 85°C | °C |
Sensor Seal Rating | IP67 | - |
Display Seal Rating | IP65 (when panel mounted) | - |
