Inclinometers » Accessories » USB-RS232/RS485-01 - USB to RS232/RS485 Communication Cable and 2 Meter Cable with Bare Ends

Product Datasheet (pdf 517 KB) USB-RS232/RS485-01 – USB to RS232/RS485 Communication Cable and 2 Meter Cable with Bare Ends

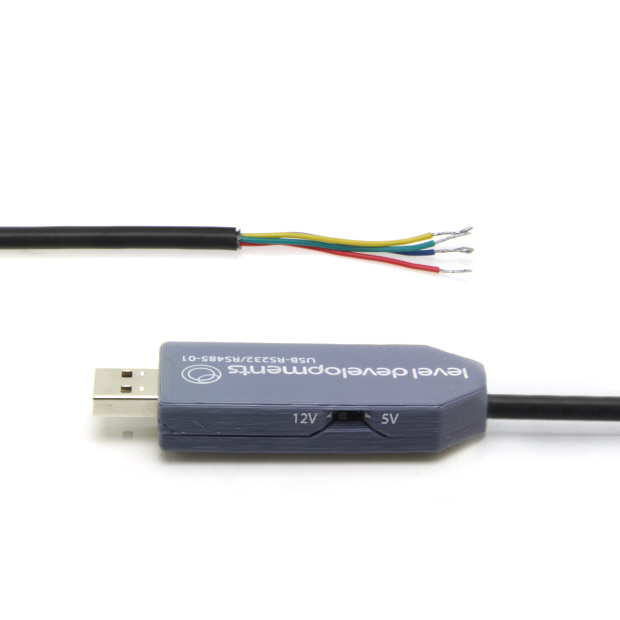

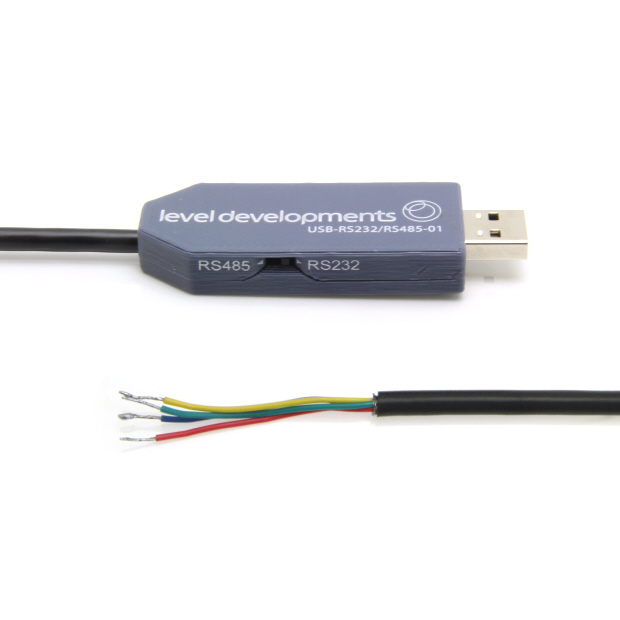

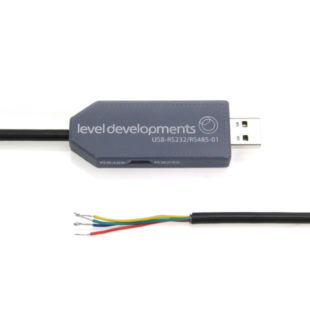

A USB to serial converter cable featuring (both) a user-selectable RS232/RS485 interface, and a user-selectable 5V/12V DC power supply for powering connected devices. This version is fitted with 2m cable with bare ends. Compatible with Windows, MacOS and Linux operating systems.

Features

  • USB to RS232 & RS485 interface cable, user selectable with the side-mounted switch.
  • Built in 5V and 12V DC power supply to supply power for connected devices, user selectable with the side-mounted switch.
  • 2m length cable with bare wires ends.
  • FTDI chipset compatible with Windows, MacOS and Linux operating systems.
  • CE certified and RoHS compliant.
  • Manufactured and tested in the UK.

Product Specification

Parameter Value Unit
Length 2000 mm
Width 25.6 mm
Height 10.05 mm
Weight 63.5 Grams
Operational Temperature Range 0 to 50 °C
Storage Temperature Range 0 to 50 °C
Certification   Download
RoHS CertificateDownload Certificate
REACH CertificateDownload Certificate
Conflict Minerals CertificateDownload Certificate
