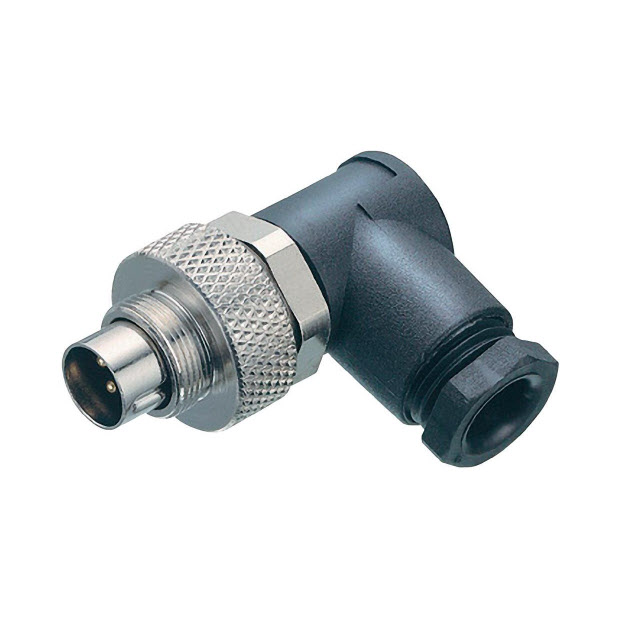

EL-CON-99-0421-70-07 – Connector, M9, 7 Pin Male, Right angle

An M9, 7 Pin male right angled mating connector with solder bucket connections. Suitable for use with the VS series inclinometer

EL-CON-99-0421-70-07 – Connector, M9, 7 Pin Male, Right angle
1

Features

  • For cable OD: 3.5mm to 5.5mm
  • Screw connector locking system
  • IP67 Rated
  • Solder bucket type connections

Product Specification

Parameter Value Unit
Connector 1 M9, 7 Pin, Male (right Angle) -
Screened No -
Used On VS series inclinometer -
