LCP-45 – Dual Axis Inclinometer Sensor ±45°, UART and RS232 output

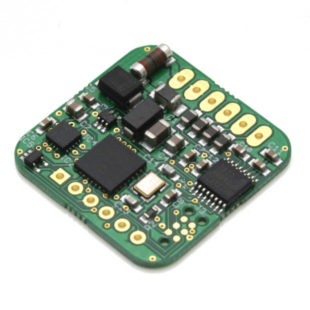

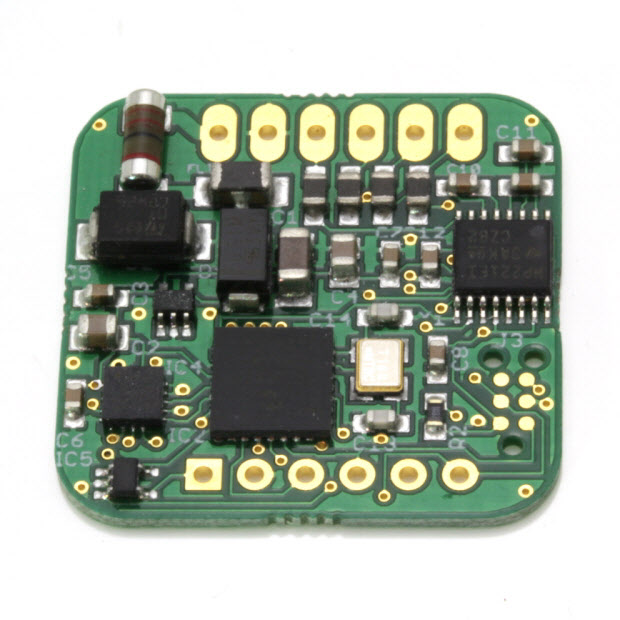

The LCP-45 is a low cost dual axis inclinometer sensor supplied in a PCB format for mounting onto 0.1" PCB headers. It has a digital interface with a full duplex RS232 output as well as a TTL level (3.3V) UART for connection directly to a micro-controller serial port. A housed version with cable is also available (part number LCH-45).

LCP-45 – Dual Axis Inclinometer Sensor ±45°, UART and RS232 output 1
LCP-45 – Dual Axis Inclinometer Sensor ±45°, UART and RS232 output 2
12

Features

  • Dual axis measurement : ±45°
  • RS232 and TTL level UART full duplex communication
  • Programmable frequency response between 0.125 and 32Hz
  • Small size, 25.4 x 25.4 x 5mm
  • On board temperature sensor
  • Calibrated and compensated for cross axis errors

Product Specification

Parameter Value Unit
Number of Axis: 2 -
Range ±45 °
Resolution 0.1 °
Accuracy at 20°C 0.5 °
Output Type RS232 -
Output Format 38.4, 8,1,n -
Technology MEMS -
Maximum Zero Bias Error ±0.2 °
Uncompensated Temp Error 0.01 ° / °C
Low Pass Filter Frequency 0.125 to 16 Hz
Parameter Value Unit
Supply Voltage (min) 3.3 V
Supply Voltage (max) 15 V
Supply Current 15 mA

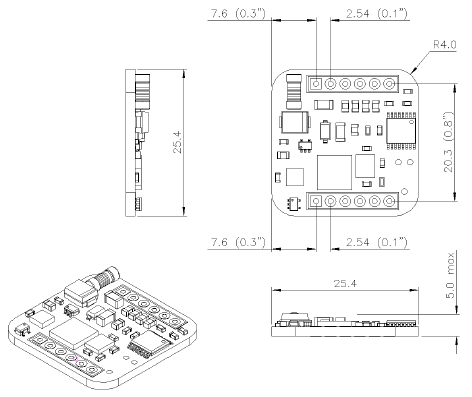

Dimension Value Unit
Sensor Case Material -
Length 25.4 mm
Width 25.4 mm
Height 4 mm
Weight 3 Grams
Parameter Value Unit
Operational Temperature Range -40 to 85 °C
Storage Temperature Range -40 to 85 °C
Certification   Download
RoHS CertificateDownload Certificate
REACH CertificateDownload Certificate
Conflict Minerals CertificateDownload Certificate
