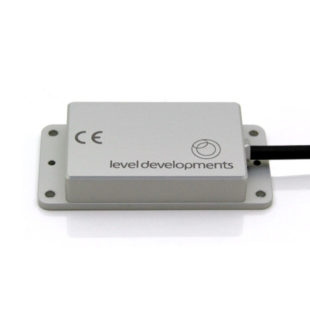

SOLAR-360-2-RS485M – Inclinometer Sensor Single Axis ±180°, RS485 Modbus, With TC

SOLAR-360-2-RS485M – Inclinometer Sensor Single Axis ±180°, RS485 Modbus, With TC 1
SOLAR-360-2-RS485M – Inclinometer Sensor Single Axis ±180°, RS485 Modbus, With TC 2
SOLAR-360-2-RS485M – Inclinometer Sensor Single Axis ±180°, RS485 Modbus, With TC 3
123

Features

  • Single axis measurement range ±180°
  • High resolution and accuracy
  • Temperature compensated over -10 to 60°C
  • RS485 interface with ModBus communication protocol
  • Tough sealed anodised aluminium housing (IP67)
  • CE certified and RoHS compliant.
  • Braided screen 4 core 2m PUR cable
  • Small size, 75 x 37.5 x 15mm and light weight

Product Specification

Parameter Value Unit
Number of Axis: 1 -
Range ±180 °
Resolution 0.002 °
Accuracy at 20°C 0.015 °
Output Type RS485 ModBus -
Output Format 38400,8,N,1 -
Technology Precision MEMS -
Long Term Drift 0.007 °
Compensated Temp Error 0.0003 ° / °C
Accuracy at 0 - 50°C 0.03 °
Low Pass Filter Frequency 0.125 to 16 Hz
Maximum Devices On Network 128 -
Parameter Value Unit
Supply Voltage (min) 12 V
Supply Voltage (max) 30 V
Supply Current 20 mA
Dimension Value Unit
Sensor Case Material Anodised Aluminium -

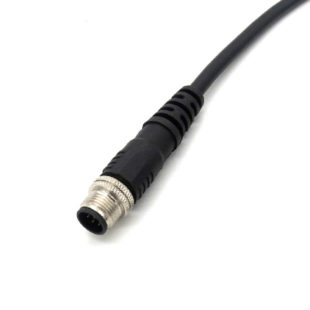

Connection Style 4-pin M12 male -
Cable Length 2 m
Length 74.6 mm
Width 37.5 mm
Height 15 mm
Weight 45 g
Parameter Value Unit
Operational Temperature Range -40 to 85 °C
Storage Temperature Range -40 to 85 °C
Sensor Seal Rating IP67 -
Certification   Download
RoHS CertificateDownload Certificate
REACH CertificateDownload Certificate
Conflict Minerals CertificateDownload Certificate
