Inclinometers » Subsea Bullseye Levels » 5886/1 - Subsea bullseye level (ball inclinometer), Ø300, range ±7°

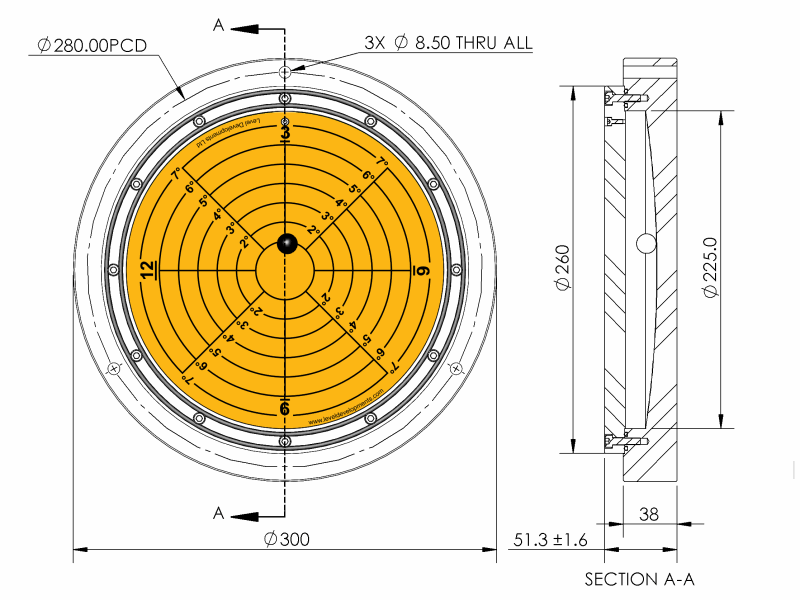

Product Drawing (pdf 719 KB) 5886/1 – Subsea bullseye level (ball inclinometer), Ø300, range ±7°

These subsea bullseye level and slope indicators are used to level or measure the angle of subsea structures and equipment. They are designed to be easily readable by ROV’s and subsea cameras, and have been used successfully on subsea projects down to 6000m (20,000ft).

5886/1 – Subsea bullseye level (ball inclinometer), Ø300, range ±7°
5886/1 – Subsea bullseye level (ball inclinometer), Ø300, range ±7°
12

Features

  • Background colour eliminates glare for improved visibility from ROV
  • ±7° measurement range, 300mm diameter
  • Simple mounting arrangement with 3 holes in flange
  • Type tested to 6,000m (20,000ft)
  • Scale printed on ball surface to eliminate parallax error
  • Custom built handles and bases to suit customers application.

Applications

  • Used on all kinds of subsea structures including:
  • Blowout preventer (BOP) stacks
  • Lower marine riser package
  • Pipelines and Manifolds
  • Christmas trees and Suction Piles

Product Specification

Parameter Value Unit
Diameter 300 mm
Range ±7 °
Scale Interval 1 °
Accuracy 0.2 °
Material Acrylic (PMMA) -
Maximum Working Depth 6000 m
Ball Diameter 15.9 mm
Dimension Value Unit
Overall Diameter 300 mm
Body Diameter 260 mm
Overall Height 51.3 mm
Flange Height 38 mm
Pitch Centre Diameter For Mounting Holes 280 mm
Hole Diameter 8.5 mm
Material Acrylic (PMMA) -
Weight 4.1 Kilograms
Parameter Value Unit
Operational Temperature Range -10 to 50 °C
Storage Temperature Range -10 to 50 °C
