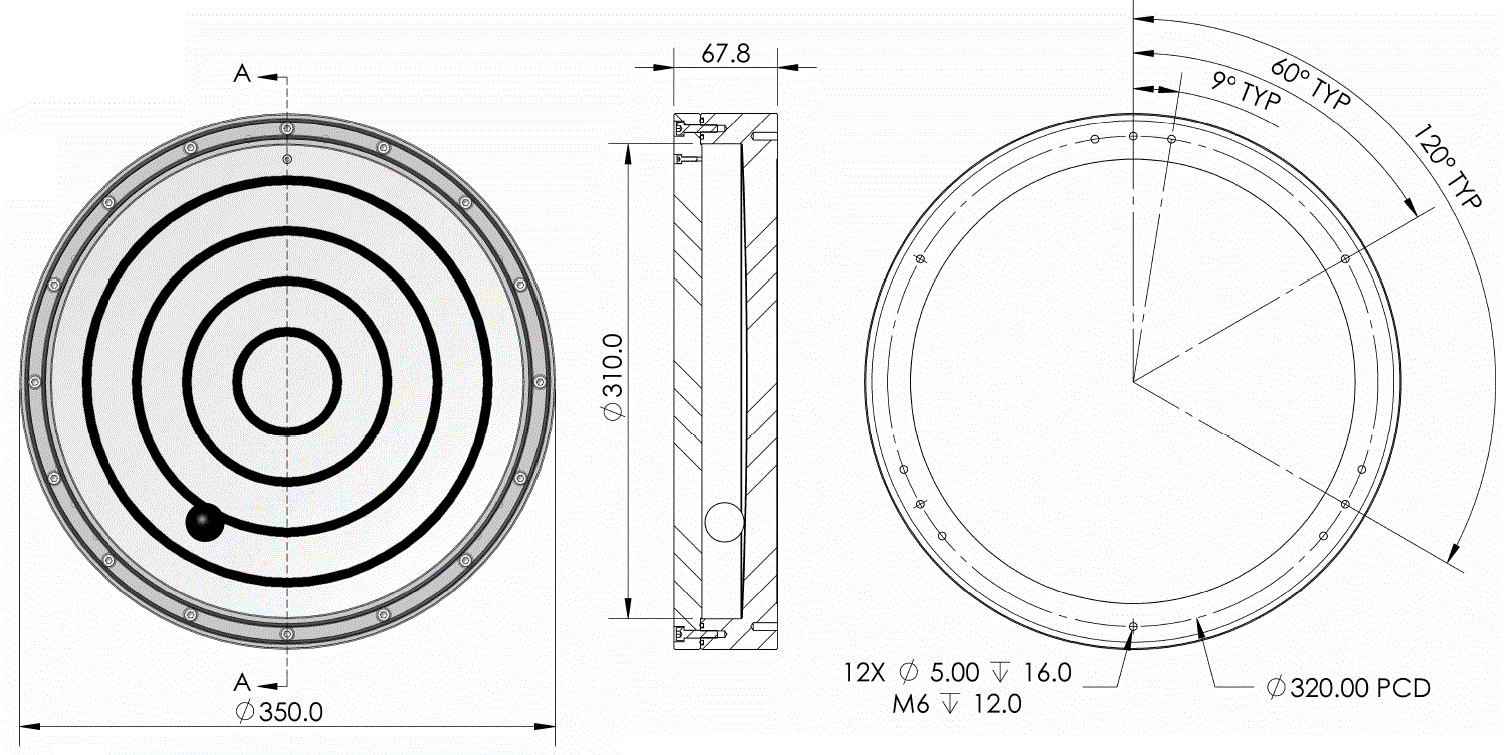

Product Drawing (pdf 607 KB) 6088/1 – Subsea bullseye level (ball inclinometer), Ø350, range ±2°

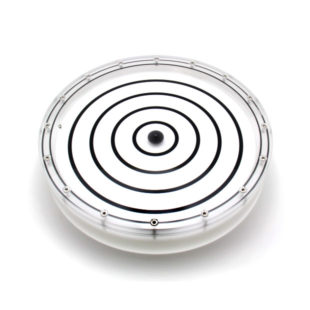

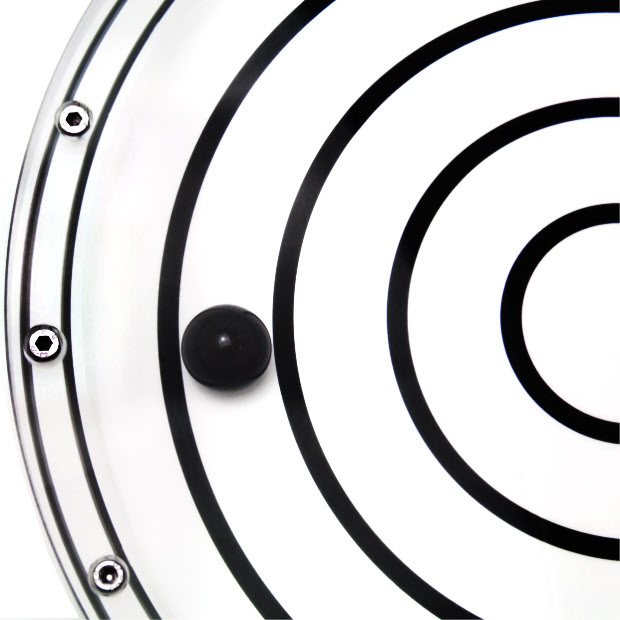

These subsea bullseye level and slope indicators are used to level or measure the angle of subsea structures and equipment. They are easily readable by ROV’s and subsea cameras, and have been pressure rated to 6000m.
Features
- Large 350mm diameter with 1" ball
- Excellent visibility from ROV
- ±2° measurement range, 350mm diameter
- Type tested to 6,000m (20,000ft)
- Liquid filled
- Scale printed on ball surface to eliminate parallax
- Range of mounting bases and mounting hardware
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 350 | mm |
Range | ±2 | ° |
Scale Interval | 0.5 | ° |
Accuracy | 0.2 | ° |
Material | Acrylic (PMMA) | - |
Maximum Working Depth | 6000 | m |
Ball Diameter | 25.4 | mm |
Dimension | Value | Unit |
---|---|---|
Overall Diameter | 350 | mm |
Body Diameter | 350 | mm |
Overall Height | 68 | mm |
Flange Height | 68 | mm |
Pitch Centre Diameter For Mounting Holes | - | mm |
Hole Diameter | - | mm |
Material | Acrylic (PMMA) | - |
Weight | 7 | Kilograms |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -10 to 50 | °C |
Storage Temperature Range | -10 to 50 | °C |
