Inclinometers » Tilt Switches » ETS-1-4-O - Omni directional tilt switch, adjustable range ±1° to ±4°

Product Datasheet (pdf 970 kB) ETS-1-4-O – Omni directional tilt switch, adjustable range ±1° to ±4°

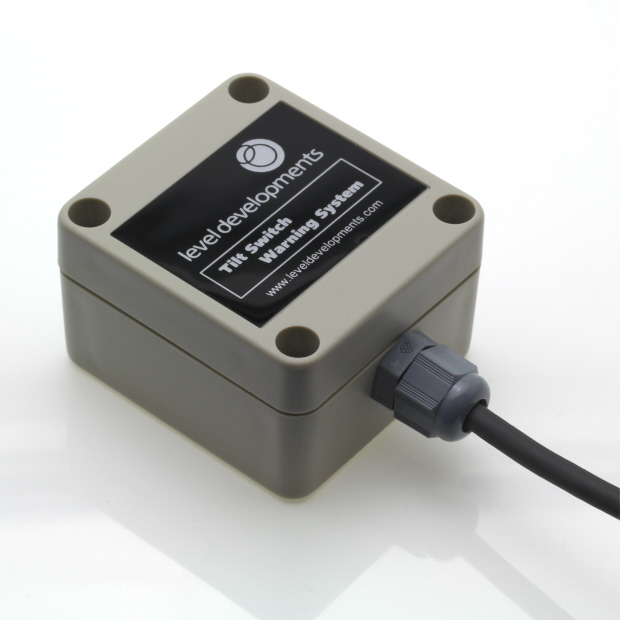

An omni directional tilt switch with an adjustable switching threshold between 1 and 4 degrees. Omni directional means that the switch will operate at the set angle regardless of the direction of the tilt.

Features

  • High precision omni-directional tilt switching
  • Adjustable switching threshold from 1 to 4°
  • 'ZERO' button to set zero after installation
  • Mercury free and RoHS compliant
  • Sealed to IP67, CE and FCC certified

Applications

  • Safety cut-out for telescopic and scissor lifts
  • Safety cut-out for cranes with hydraulic levelling
  • Tilt warning system for platform and hoist levelling
  • Rollover warning system for agricultural vehicles

Product Specification

Parameter Value Unit
Number of Axis Omni (Dual) -
Switching Angle Range - Minimum 1 °
Switching Angle Range - Maximum 4 °
Output Format Relay -
Inclination Output Format None -
Accuracy at 20°C 0.1 °
Accuracy 0 - 50°C 0.3 °
Accuracy -20 - 70°C 0.6 °
Accuracy -40 - 85°C 0.7 °
Switching Hysteresis 0.2 °
Maximum Mechanical Shock 5000g fro 0.5ms G
Frequency Response 0.25Hz Hz
Parameter Value Unit
Supply Voltage (min) 9 V
Supply Voltage (max) 30 V
Supply Current 10mA mA
Dimension Value Unit
Sensor Case Material ABS -
Connection Style Pigtail -
Cable Length 2 m
Length 60 mm
Width 65 mm
Height 40 mm
Weight 180 Grams
Parameter Value Unit
Operational Temperature Range -20 to 70 °C
Storage Temperature Range -40 to 85 °C
Sensor Seal Rating IP67 -
