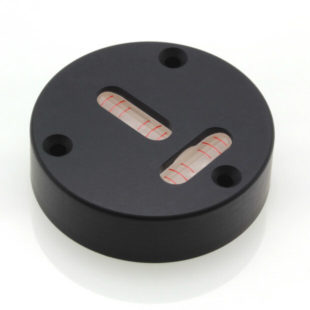

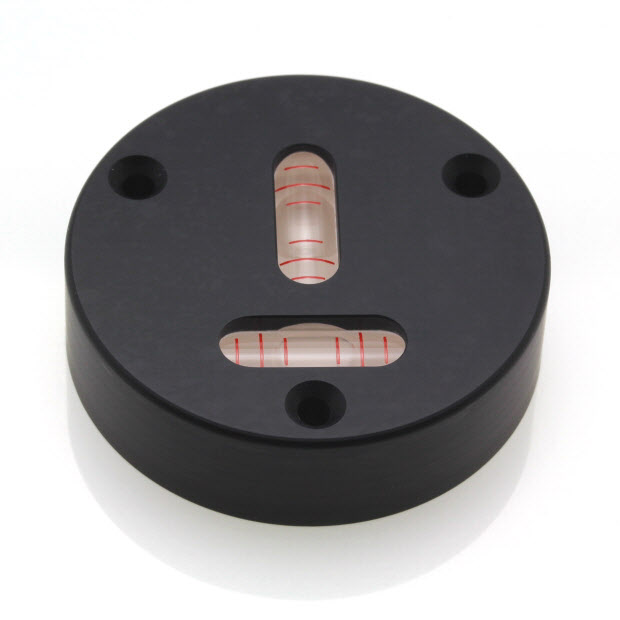

Product Datasheet (pdf 55 kB) CT40B/2 – Circular cross level, Ø40mm, sens. 2mm/m

Features

  • Sensitivity 2mm/m (6.9 minutes per division)
  • Precision ground glass vials
  • Ceramic line markings
  • Precision machined Aluminium Housing
  • Black anodised finish

Applications

  • Machine levelling
  • Robot position zero setting

Product Specification

Parameter Value Unit
Length 40 mm
Height 11 mm
Width 40 mm
Sensitivity Per Division 6.9 minutes
Division Size mm
Hole Centres Ø32 PCD mm
Hole Diameter 2.6 mm
Magnetic No -
Case Material Aluminium -
Vial Material Glass -
Finish Black Anodised -
Liquid Colour Clear -
Light none -

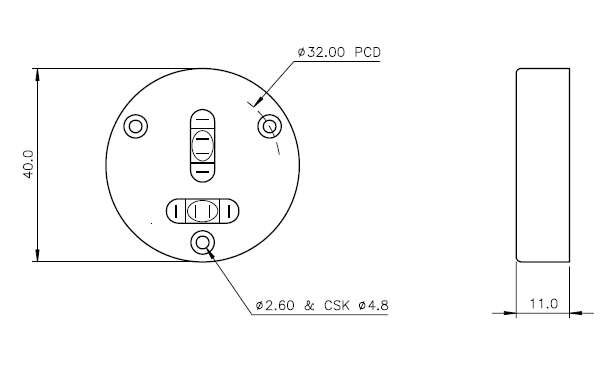

Dimension Value Unit
Length 40 mm
Width 40 mm
Height 11 mm
Weight 28.23 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -20 to 70 °C
