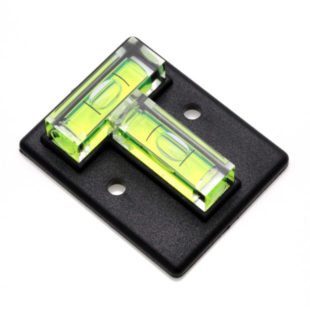

Instrument Levels » 2 Axis Levels » T50 - Plastic T level, 50x40mm, black base

Product Datasheet (pdf 79 kB) T50 – Plastic T level, 50x40mm, black base

Features

  • High quality plastic vials
  • White backing
  • Black ABS base
  • Set level with reference to underside
  • Can be used free standing or attached with two fixing holes

Product Specification

Parameter Value Unit
Length 49.5 mm
Height 13 mm
Width 39.7 mm
Sensitivity Per Division 40 minutes
Division Size mm
Hole Centres 25.8 mm
Hole Diameter 4 mm
Magnetic No -
Case Material ABS -
Vial Material PMMA -
Finish Black -
Liquid Colour Yellow/Green -
Light none -

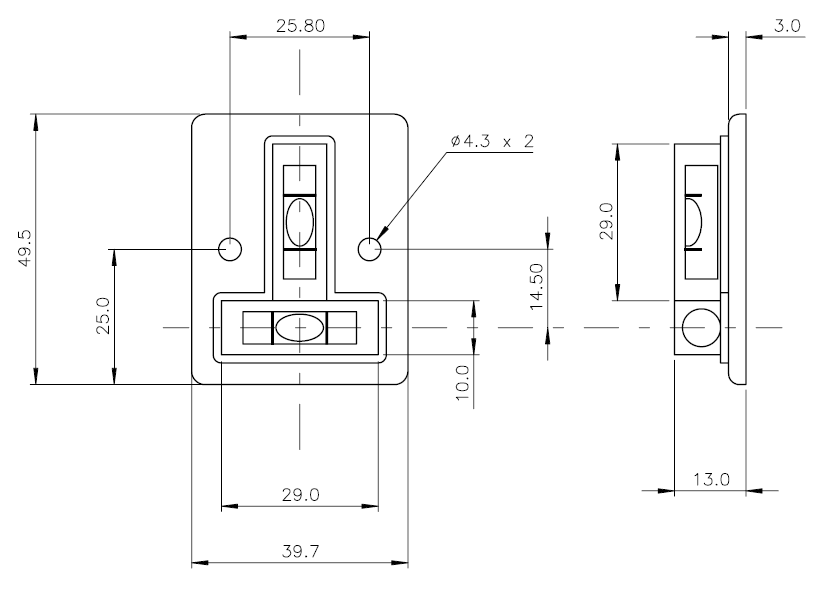

Dimension Value Unit
Length 49.5 mm
Width 39.7 mm
Height 13 mm
Weight 12 Grams
Parameter Value Unit
Operational Temperature Range -15 to 60 °C
Storage Temperature Range -25 to 70 °C
