Product Datasheet (pdf 54 KB) 5525/2 – Screw on Level . 16 x 16 x 90mm, Sensitivity 2’/mm
Features
- Designed for mounting on a vertical surface
- Precision ground glass vial
- Sensitivity 2 minutes per 2mm bubble movement
- Precision ground flat base
Applications
- Instrument levelling
- Printing machine levelling
- Workpiece levelling

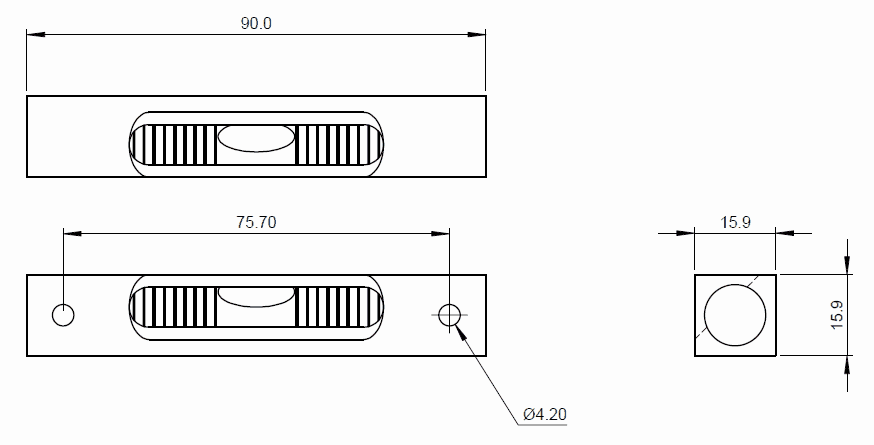

Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Length | 90 | mm |
| Height | 15.9 | mm |
| Width | 15.9 | mm |
| Sensitivity Per Division | 2 | Minutes |
| Hole Centres | 75.7 | mm |
| Hole Diameter | 4.2 | mm |
| Magnetic | No | - |
| Cross Vial | No | - |
| Case Material | Brass | - |
| Vial Material | Glass | - |
| Finish | Black zinc plated | - |
| Liquid Colour | Clear | - |
| Light | none | - |
| Dimension | Value | Unit |
|---|---|---|
| Length | 90 | mm |
| Width | 15.9 | mm |
| Height | 15.9 | mm |
| Weight |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -10 to 50 | °C |
| Storage Temperature Range | -40 to 60 | °C |
