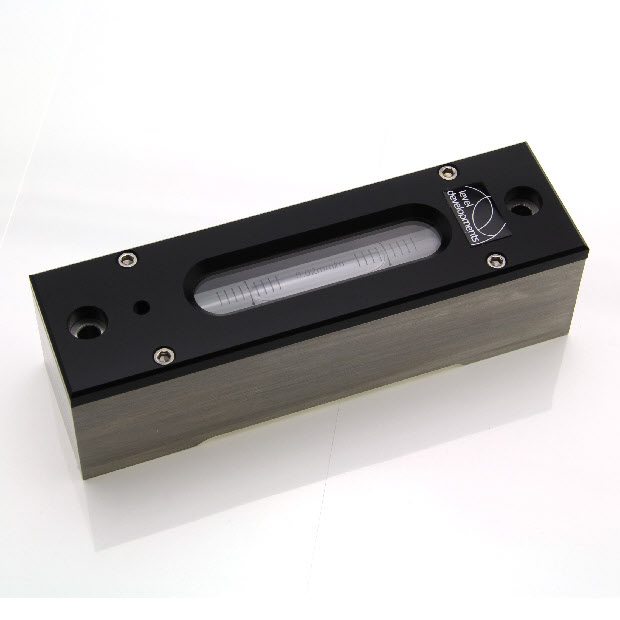

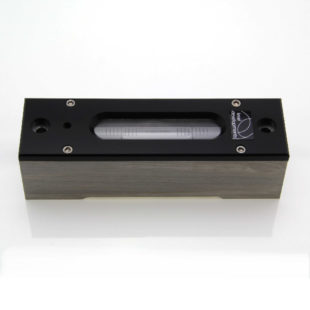

Product Drawing (pdf 185 KB) 5745/2 – Precision Level, 0.02mm/m
Features

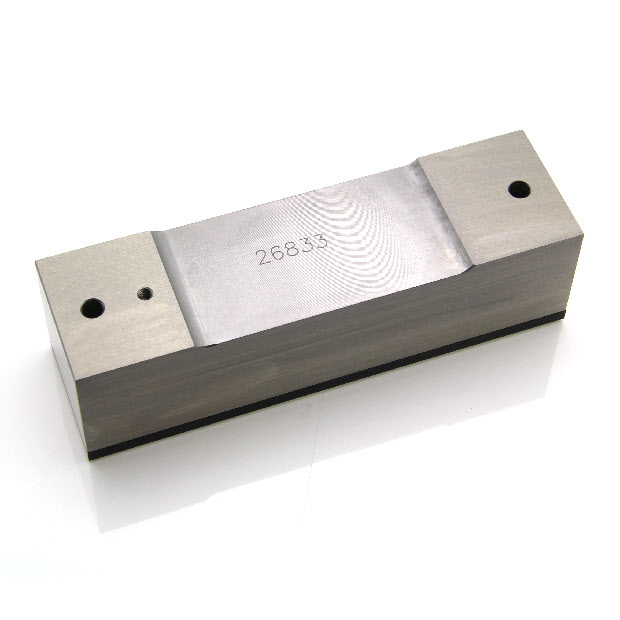

- Stainless steel base
- Precision Ground Vial
- Precision Ground flat base
- Sensitivity 0.02mm/m
Applications
- Machine levelling
- Semiconductor fabrication systems alignment
Product Specificationn
| Parameter | Value | Unit |
|---|---|---|
| Length | 140 | mm |
| Height | 40 | mm |
| Width | 39 | mm |
| Sensitivity Per Division | 0.02 | mm/m |
| Cross Vial | No | - |
| Base Style | Flat | - |
| Magnetic | No | - |
| Dimension | Value | Unit |
|---|---|---|
| Length | 140 | mm |
| Width | 39 | mm |
| Height | 40 | mm |
| Weight | 1200 | g |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | °C | |
| Storage Temperature Range | °C |
