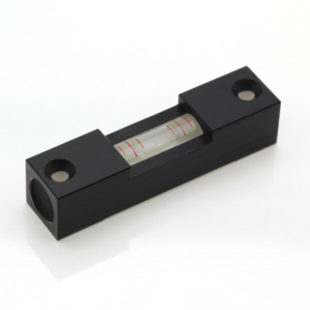

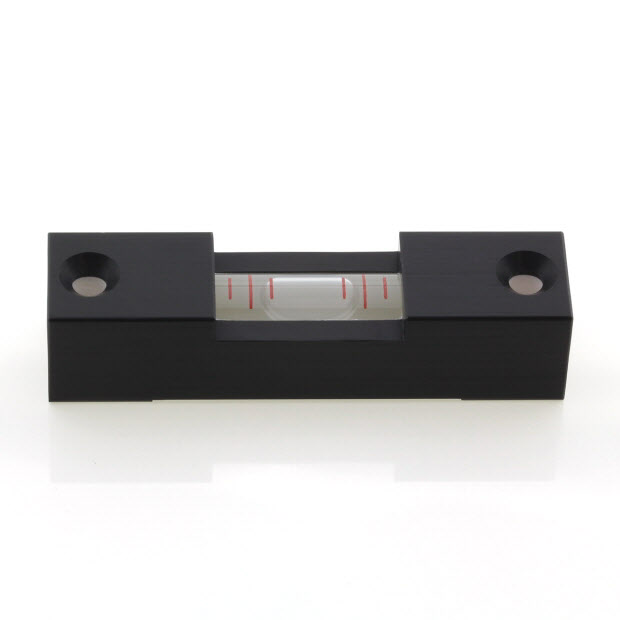

Instrument Levels » Instrument Screw On Levels » EL50/1 - Screw on level, 50x12x12mm, sens 1mm/m

Product Datasheet (pdf 382 kB) EL50/1 – Screw on level, 50x12x12mm, sens 1mm/m

Features

  • Precision ground glass vial
  • Sensitivity 1mm/m (per 2mm bubble movement)
  • Vial constrast lines for improved visibility
  • Precision ground flat base

Applications

  • Instrument levelling
  • Printing machine levelling
  • Workpiece levelling

Product Specification

Parameter Value Unit
Length 50 mm
Height 12 mm
Width 12 mm
Sensitivity Per Division 1 mm/m
Division Size mm
Hole Centres 42 mm
Hole Diameter 3.1 mm
Magnetic No -
Cross Vial No -
Case Material Aluminium -
Vial Material Glass -
Finish Black anodised -
Liquid Colour Clear -
Light none -

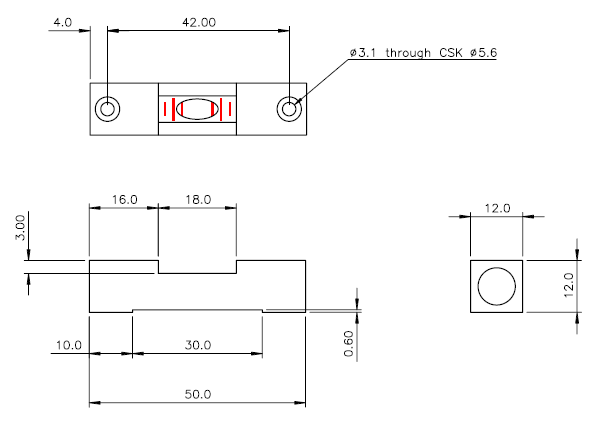

Dimension Value Unit
Length 50 mm
Width 12 mm
Height 12 mm
Weight 12.35 Grams
Parameter Value Unit
Operational Temperature Range -10 to 50 °C
Storage Temperature Range -40 to 60 °C
