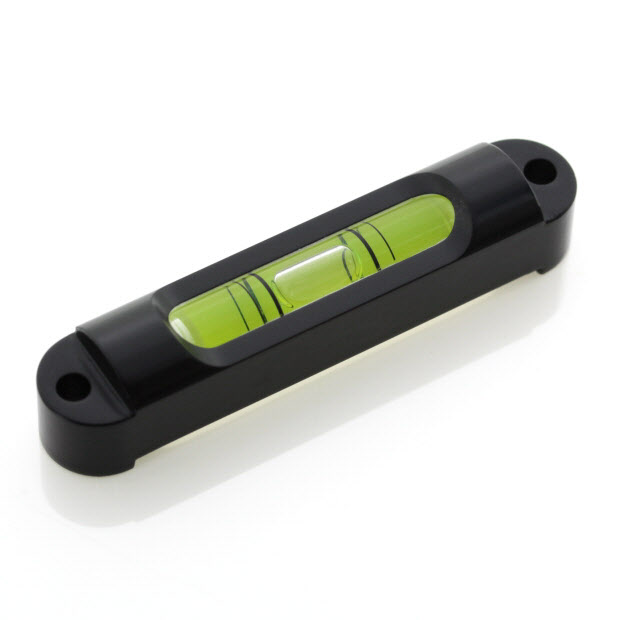

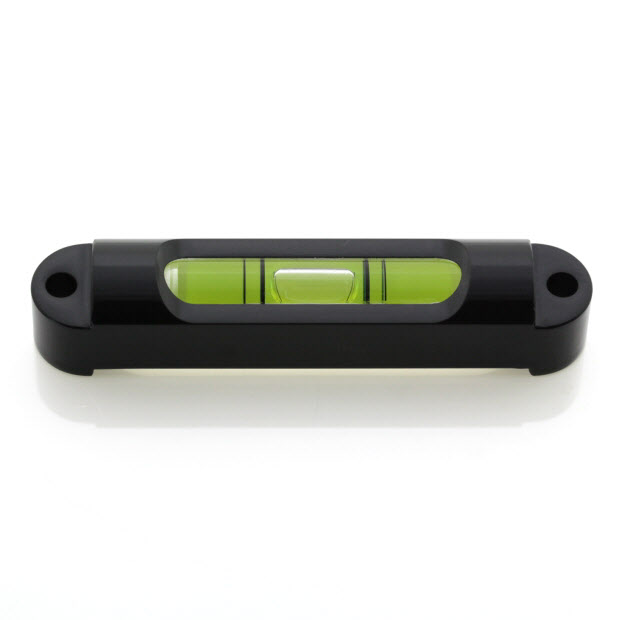

Instrument Levels » Instrument Screw On Levels » GPL15 - Instrument Level, 73mm long, Plastic vial, Sens: 45'/2mm

Product Datasheet (pdf 101 kB) GPL15 – Instrument Level, 73mm long, Plastic vial, Sens: 45’/2mm

Features

  • Plastic Vial, sensitivity 45'/2mm
  • Machined aluminium housing
  • Black anodised finish
  • Water resistant (waterproof version also available)

Applications

  • Machine and instrument levelling
  • Platform levelling
  • Mobile crane levelling

Product Specification

Parameter Value Unit
Length 73 mm
Height 14.4 mm
Width 14.3 mm
Sensitivity Per Division 45 minutes
Division Size mm
Hole Centres 65.1 mm
Hole Diameter 3.95 mm
Magnetic No -
Cross Vial No -
Case Material Aluminium -
Vial Material Plastic -
Finish Black Anodised -
Liquid Colour Yellow/Green -
Light none -

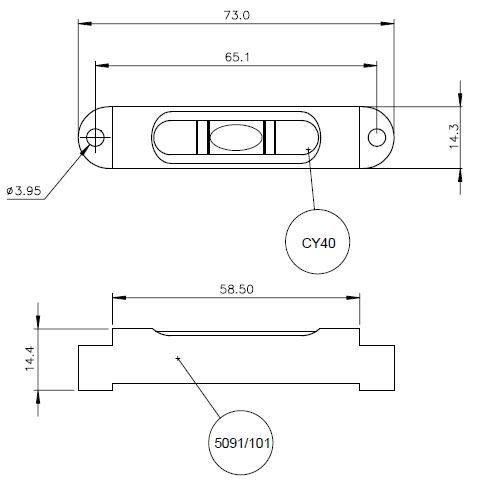

Dimension Value Unit
Length 73 mm
Width 14.3 mm
Height 14.4 mm
Weight 19 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 65 °C
