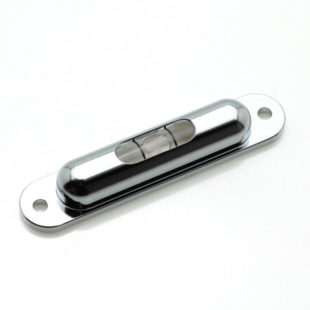

Instrument Levels » Instrument Screw On Levels » LM9C - Instrument screw on level, 55mm long, sensitivity 34'/2mm

Product Datasheet (pdf 86 kB) LM9C – Instrument screw on level, 55mm long, sensitivity 34’/2mm

Features

  • Machined Aluminium Housing
  • Chrome Plated finish
  • Precision glass vial
  • Indelible Ceramic Markings
  • Level with reference to the underside of housing
  • Low cost

Applications

  • Machine and instrument levelling
  • Platform levelling

Product Specification

Parameter Value Unit
Length 55 mm
Height 8.3 mm
Width 11 mm
Sensitivity Per Division 34 minutes
Division Size mm
Hole Centres 47.6 mm
Hole Diameter 2.6 mm
Magnetic No -
Cross Vial No -
Case Material Aluminium -
Vial Material Glass -
Finish Chrome Plated -
Liquid Colour Clear -
Light none -
Dimension Value Unit
Length 55 mm
Width 11 mm
Height 8.3 mm
Weight 6 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -40 to 70 °C
