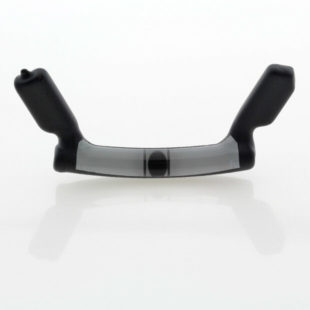

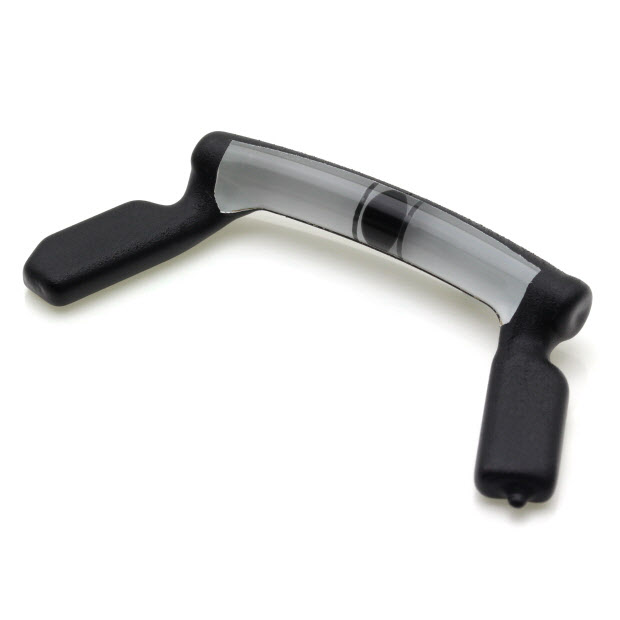

5775/101 – Inclinometer Vial (Ball type) slip Indicator

Features

  • Black glass ball
  • Wide temperature range
  • Dual expansion chamber

Applications

  • Slip Indicator for aircraft attitude control

Product Specification

Parameter Value Unit
Diameter 7 mm
Shoulder Length 47 mm
Overall Length 64 mm
Sensitivity
Bending Radius 85 mm
Ball Diameter 4.8 mm
Liquid Colour Clear -
Backing Colour White and Black -
Glass Type Soda -
Dimension Value Unit
Diameter 7 mm
Shoulder Length 47 mm
Overall Length 64 mm
Weight 4.2 Grams
Parameter Value Unit
Operational Temperature Range -40 to 70 °C
Storage Temperature Range -55 to 140 °C
