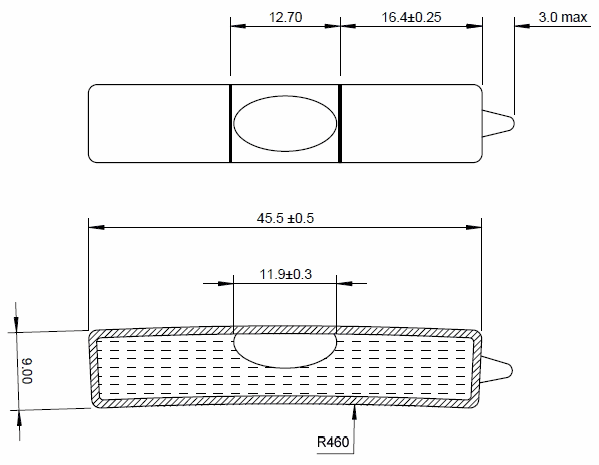

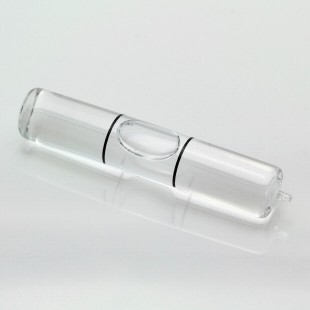

Product Drawing (pdf 66 KB) 13266 – Bent vial 3/8" x 1.13/16"
Features
- Black ceramic markings
- Precision bent glass vials
- High quality glass and finish
- Wide temperature range
Applications
- High quality construction levels
- Instrument levels
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 9 | mm |
| Shoulder Length | 45.5 | mm |
| Overall Length | 48 | mm |
| Sensitivity Per 2mm | 15 | minutes |
| Bending Radius | 460 | mm |
| Bubble Size | 11.9 | mm |
| Line Spacing | 12.7 | mm |
| Line Colour | Black | - |
| Liquid Colour | Clear | - |
| Backing Colour | Clear | - |
| Glass Type | Soda | - |
| Light | none | - |
| Dimension | Value | Unit |
|---|---|---|
| Diameter | 9 | mm |
| Shoulder Length | 45.5 | mm |
| Overall Length | 48 | mm |
| Weight | 4 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -10 to 60 | °C |
| Storage Temperature Range | -40 to 70 | °C |
