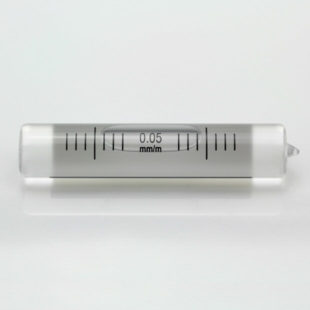

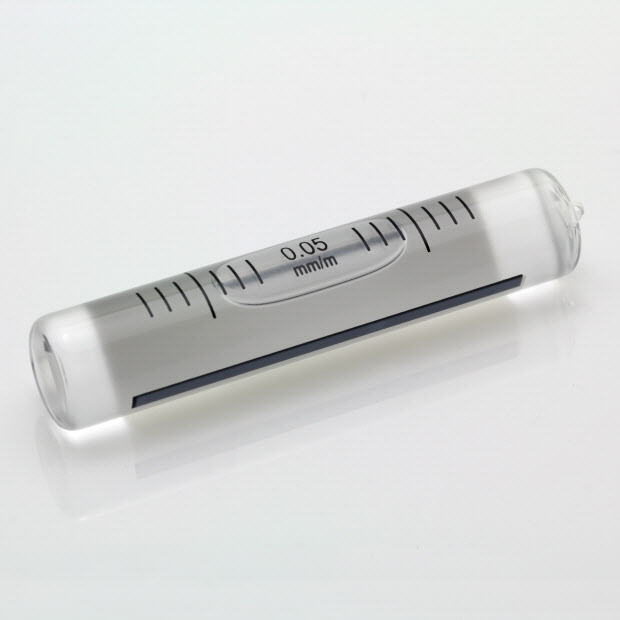

5895/101 – Ground vial, 58x12mm, sens 0.05mm/m
Features
- Sensitivity 0.05mm/m per division (10 arc seconds)
- Black ceramic lines
- Precision ground and polished
- Fast settling time
- Highly repeatable bubble positioning
- White backing
- Black contrast lines (improves bubble visibility)
Applications
- Precision engineer levels
- Precision instrument levels
- Surveying Instruments
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 12 | mm |
| Shoulder Length | 51.5 | mm |
| Overall Length | 55 | mm |
| Sensitivity Per Division | 0.05 | mm/m |
| Division Size | 2 | mm |
| Bubble Size | 23 | mm |
| Line Spacing | 24 | mm |
| Line Colour | Black | - |
| Liquid Colour | Clear | - |
| Backing Colour | White | - |
| Light | none | - |

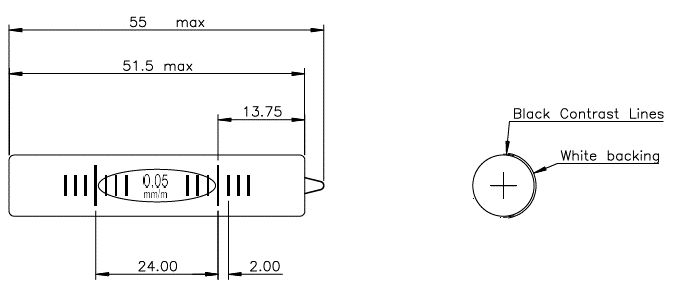

| Dimension | Value | Unit |
|---|---|---|
| Diameter | 12 | mm |
| Shoulder Length | 51.5 | mm |
| Overall Length | 55 | mm |
| Weight | 8 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to 65 | °C |
| Storage Temperature Range | -40 to 75 | °C |
