5955/101 – Ground vial, Ø15 x 96mm, sensitivity 0.01mm/m
Features
- Sensitivity 0.01mm/m per division (2 arc seconds)
- Red lines
- Precision ground and polished
- Replacement vial for 61R engineers level sens. 0.01
- Highly repeatable bubble positioning
Applications
- Precision engineer levels
- Precision instrument levels
- Surveying Instruments
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 15 | mm |
Shoulder Length | 96 | mm |
Overall Length | 100 | mm |
Sensitivity Per Division | 0.01 | mm/m |
Division Size | 2 | mm |
Bubble Size | 49 | mm |
Line Spacing | 50 | mm |
Line Colour | Red | - |
Liquid Colour | Clear | - |
Backing Colour | Clear | - |
Light | none | - |

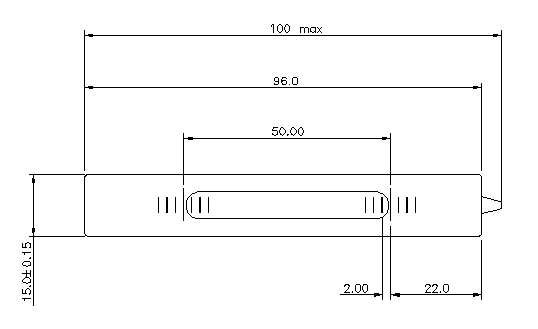

Dimension | Value | Unit |
---|---|---|
Diameter | 15 | mm |
Shoulder Length | 96 | mm |
Overall Length | 100 | mm |
Weight | 20 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 65 | °C |
Storage Temperature Range | -40 to 70 | °C |
