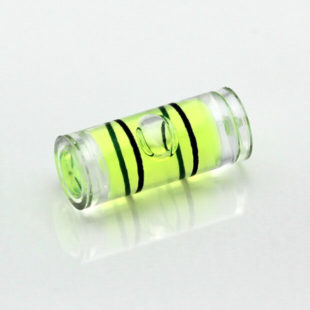

Product Drawing (pdf 76 kB) CY12 – Plastic cylindrical vial, 12x5mm, green liquid

One of our range of highest quality plastic cylindrical vials.

Features

  • High quality PMMA housing
  • Ultrasonically welded seals
  • Sesnitivity 62'/2mm
  • Yellow/Green Liquid

Applications

  • Construction levels
  • Low cost laser levels
  • OEM Installation Tools

Product Specification

Parameter Value Unit
Diameter 5 mm
Overall Length 12 mm
Sensitivity Per 2mm 62 minutes
Division Size mm
Bubble Size 3.1 mm
Line Spacing 4.5 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour Clear -

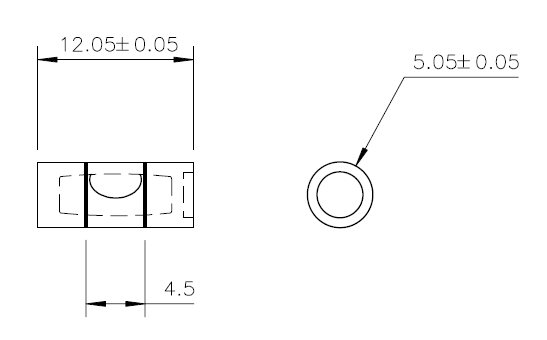

Dimension Value Unit
Diameter 5 mm
Overall Length 12 mm
Weight 0.22 Grams
Parameter Value Unit
Operational Temperature Range -10 to 60 °C
Storage Temperature Range -20 to 65 °C
