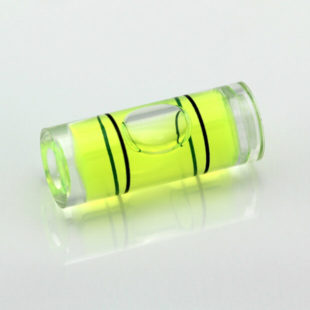

Product Drawing (pdf 57 KB) CY25 – Plastic cylindrical vial, 25x10mm, green liquid
One of our range of highest quality plastic cylindrical vials.
Features
- High quality PMMA housing
- Ultrasonically welded seals
- Sesnitivity 43'/2mm
- Yellow/Green Liquid
Applications
- Construction levels
- Low cost laser levels
- OEM Installation Tools
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 9.8 | mm |
Overall Length | 25 | mm |
Sensitivity Per 2mm | 43 | minutes |
Bubble Size | 8.2 | mm |
Line Spacing | 9.5 | mm |
Line Colour | Black | - |
Liquid Colour | Yellow/Green | - |
Backing Colour | Clear | - |

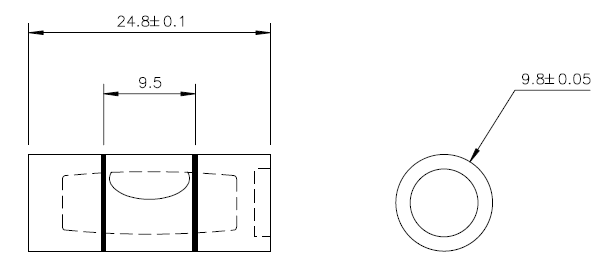

Dimension | Value | Unit |
---|---|---|
Diameter | 9.8 | mm |
Overall Length | 25 | mm |
Weight | 1.75 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -10 to 60 | °C |
Storage Temperature Range | -20 to 65 | °C |
