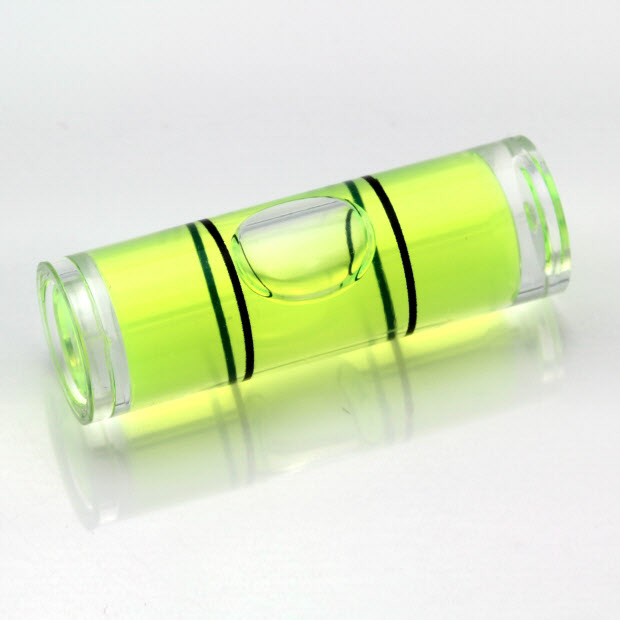

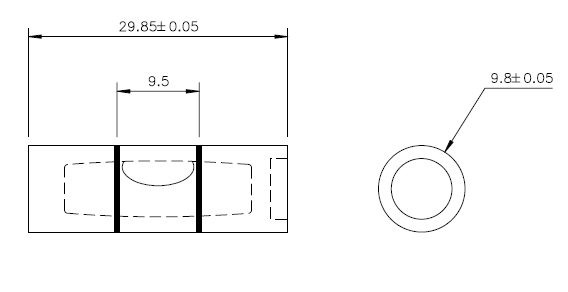

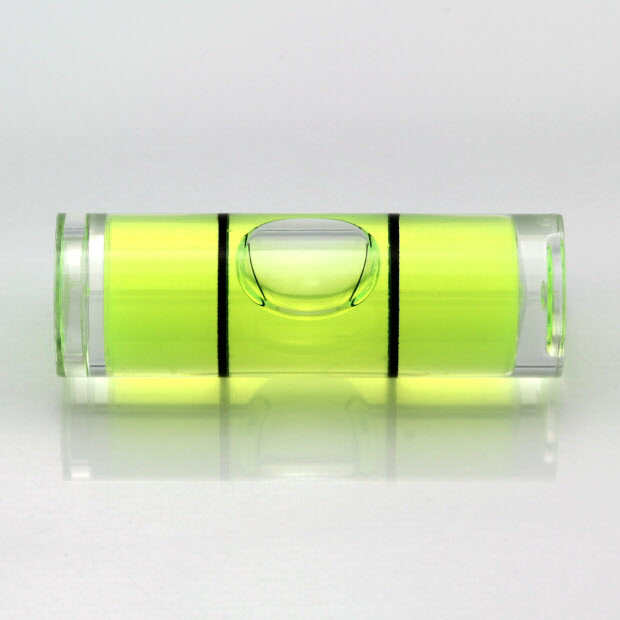

Product Drawing (pdf 57 KB) CY30 – Plastic cylindrical vial, 30x10mm, green liquid
One of our range of highest quality plastic cylindrical vials.
Features
- High quality PMMA housing
- Ultrasonically welded seals
- Sesnitivity 43'/2mm
- Yellow/Green Liquid
Applications
- Construction levels
- Low cost laser levels
- OEM Installation Tools
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 9.8 | mm |
| Overall Length | 30 | mm |
| Sensitivity Per 2mm | 43 | minutes |
| Bubble Size | 8.5 | mm |
| Line Spacing | 9.5 | mm |
| Line Colour | Black | - |
| Liquid Colour | Yellow/Green | - |
| Backing Colour | Clear | - |
| Dimension | Value | Unit |
|---|---|---|
| Diameter | 9.8 | mm |
| Overall Length | 30 | mm |
| Weight | 2.08 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -10 to 60 | °C |
| Storage Temperature Range | -20 to 65 | °C |
Similar Products
Buying Information
| Volume | Unit Price | inc VAT |
|---|---|---|
| 10 - 24 | £0.89 | £1.07 |
| 25 - 49 | £0.80 | £0.96 |
| 50 - 99 | £0.73 | £0.88 |
| 100 - 249 | £0.66 | £0.79 |
| 250 - 499 | £0.58 | £0.70 |
| 500 - 999 | £0.52 | £0.62 |
| 1000 - 2499 | £0.47 | £0.56 |
| 2500+ | POA | POA |
Quantity
Minimum order quantity:
10
1186 available for immediate despatch. More available in 42 days
For product queries, higher volume orders or custom OEM manufacture:
[email protected] +44 (0)20 8684 1400
Or use our contact form here
(Part Number for reference: CY30)
