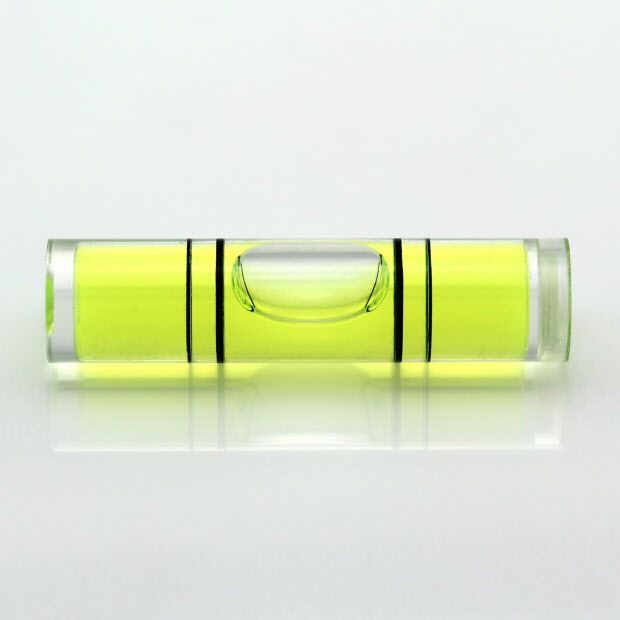

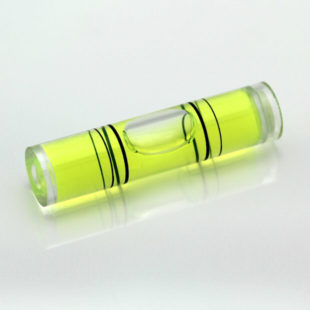

Vials » Plastic Cylindrical Vials » CY40 - Plastic vial, 39.6xØ9.5mm, 4 lines, green liquid

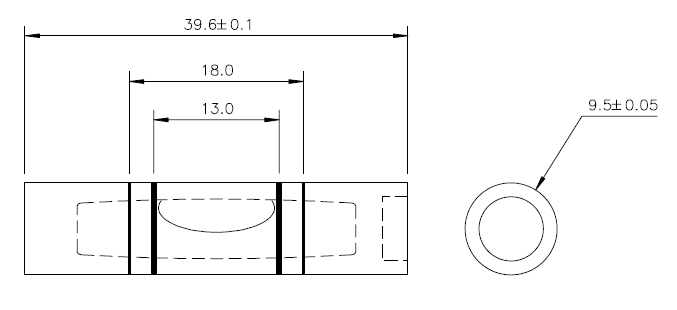

Product Drawing (pdf 58 kB) CY40 – Plastic vial, 39.6xØ9.5mm, 4 lines, green liquid

One of our range of highest quality plastic cylindrical vials.

Features

  • High quality PMMA housing
  • Ultrasonically welded seals
  • Sesnitivity 31'/2mm
  • Yellow/Green Liquid

Applications

  • Construction levels
  • Low cost laser levels
  • OEM Installation Tools

Product Specification

Parameter Value Unit
Diameter 9.5 mm
Overall Length 40 mm
Sensitivity Per 2mm 31 minutes
Division Size 2 mm
Bubble Size 12 mm
Line Spacing 13 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour Clear -
Dimension Value Unit
Diameter 9.5 mm
Overall Length 40 mm
Weight 2.62 Grams
Parameter Value Unit
Operational Temperature Range -25 to 60 °C
Storage Temperature Range -40 to 70 °C
Certification   Download
RoHS CertificateDownload Certificate
REACH CertificateDownload Certificate
Conflict Minerals CertificateDownload Certificate
