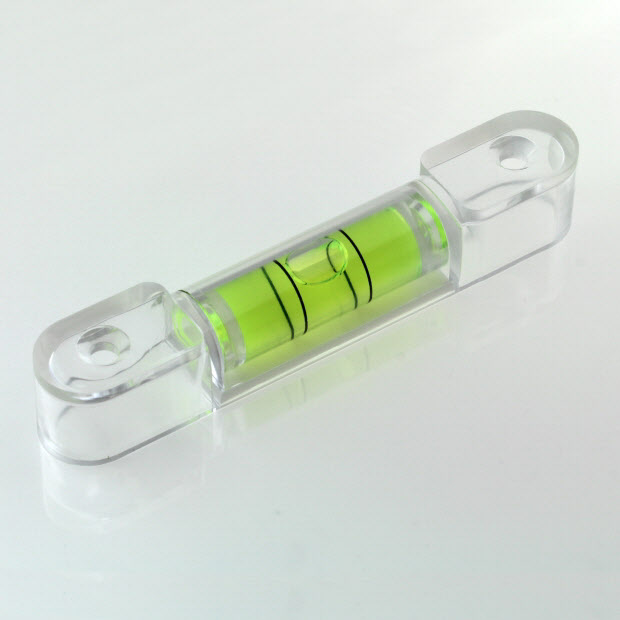

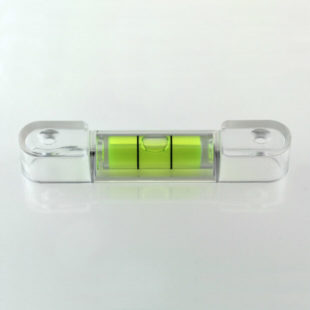

SF98 – Acrylic screw on level, 98mm long, sensitivity 43’/2mm
Features
- Two part construction, outer housing with cylindrical vial assembled inside.
- Yellow/green filling liquid
- White backing
Applications
- Instrument levelling
- Hand held tools requiring a screw on level
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Length | 97.8 | mm |
| Width | 15.9 | mm |
| Height | 16.4 | mm |
| Sensitivity Per 2mm | 43 | minutes |
| Bubble Size | 10 | mm |
| Line Spacing | 13 | mm |
| Line Colour | Black | - |
| Liquid Colour | Yellow/Green | - |
| Backing Colour | White | - |

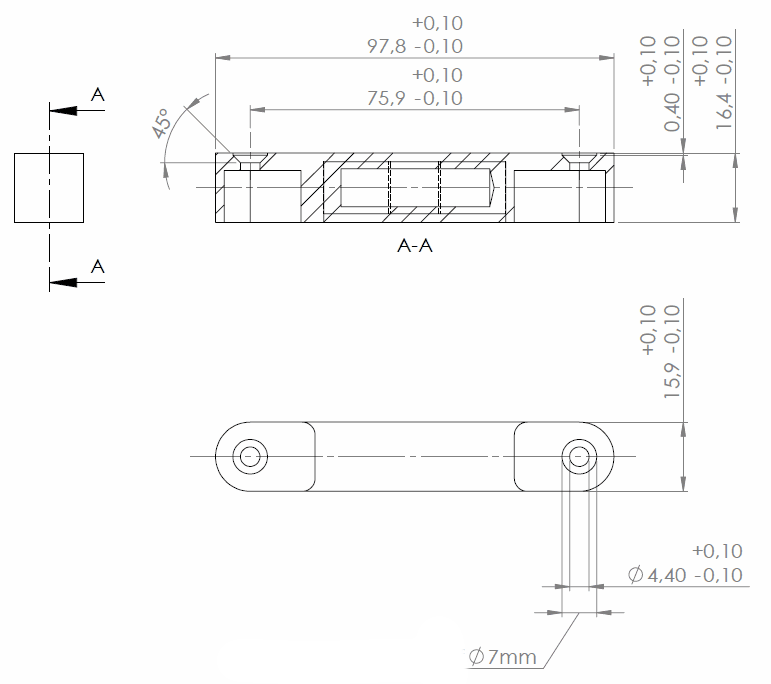

| Dimension | Value | Unit |
|---|---|---|
| Length | 97.8 | mm |
| Width | 15.9 | mm |
| Height | 16.4 | mm |
| Hole Centres | 75.9 | mm |
| Hole Diameter | 4.4 | mm |
| Weight | 16 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -10 to 60 | °C |
| Storage Temperature Range | -20 to 65 | °C |
Similar Products
Buying Information
| Volume | Unit Price | inc VAT |
|---|---|---|
| 5 - 9 | $2.18 | £2.08 |
| 10 - 24 | $2.04 | £1.94 |
| 25 - 49 | $1.83 | £1.74 |
| 50 - 99 | $1.68 | £1.60 |
| 100 - 249 | $1.51 | £1.44 |
| 250 - 499 | $1.34 | £1.27 |
| 500 - 999 | $1.20 | £1.14 |
| 1000+ | POA | POA |
Quantity
Minimum order quantity:
5
438 available for immediate despatch. More available in 28 days
For product queries, higher volume orders or custom OEM manufacture:
[email protected] +44 (0)20 8684 1400
Or use our contact form here
(Part Number for reference: SF98)
