Vials » Plastic Square Section Vials » S29 - Plastic sq. section vial, 29x10x10mm, green liquid

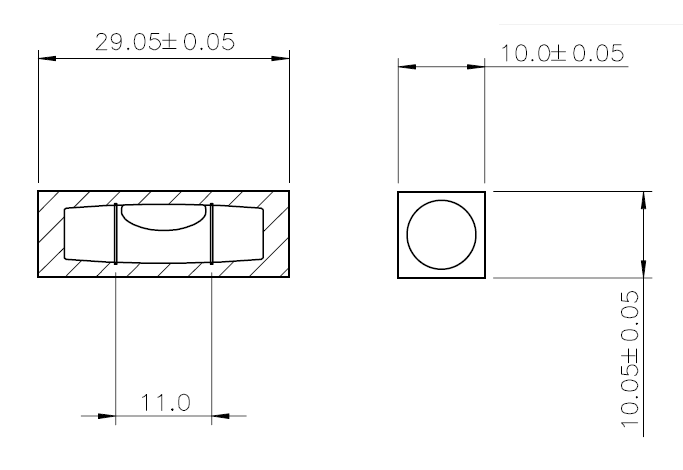

Product Drawing (pdf 49 KB) S29 – Plastic sq. section vial, 29x10x10mm, green liquid

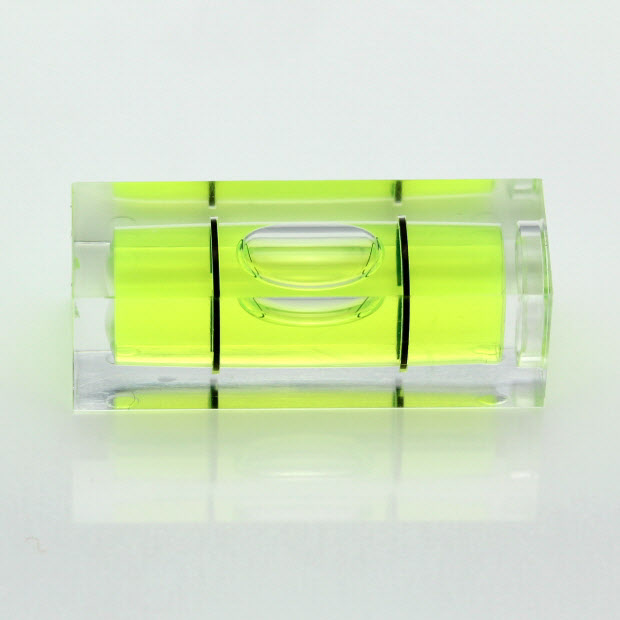

S29 – Plastic sq. section vial, 29x10x10mm, green liquid

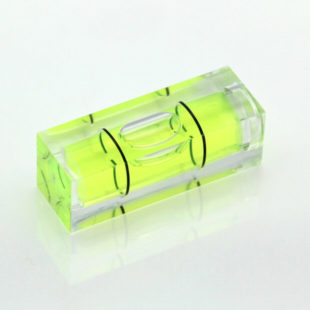

S29 – Plastic sq. section vial, 29x10x10mm, green liquid
12

Features

  • High quality PMMA, scratch free, high optical clarity material
  • Precision machined internal radius
  • Black lines, internally fitted gives minimal parallax error
  • Yellow/Green liquid

Applications

  • Construction levels
  • Levelling tools

Product Specification

Parameter Value Unit
Length 29 mm
Width 10 mm
Height 10 mm
Sensitivity Per 2mm 48 minutes
Bubble Size 9.3 mm
Line Spacing 11.5 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour Clear -
Dimension Value Unit
Length 29 mm
Width 10 mm
Height 10 mm
Weight 2.92 Grams
Parameter Value Unit
Operational Temperature Range -10 to 65 °C
Storage Temperature Range -20 to 70 °C
