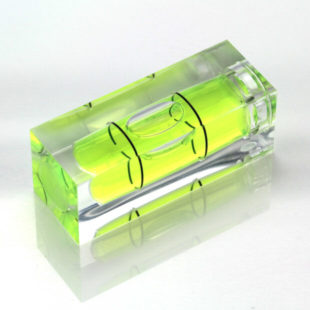

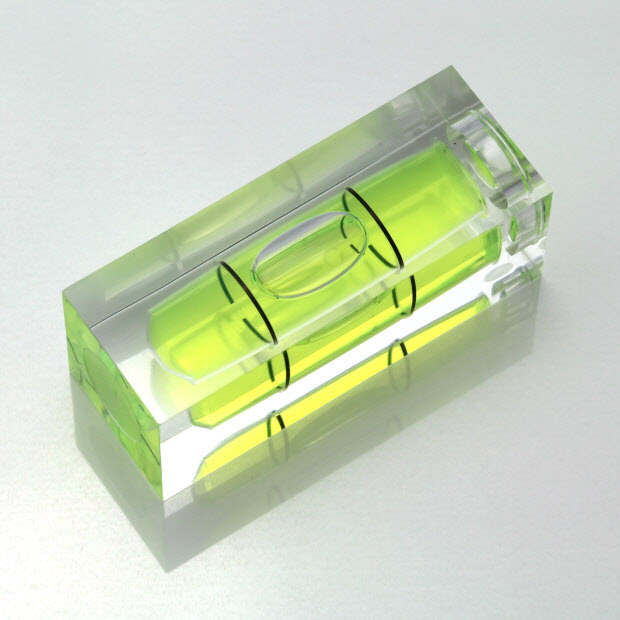

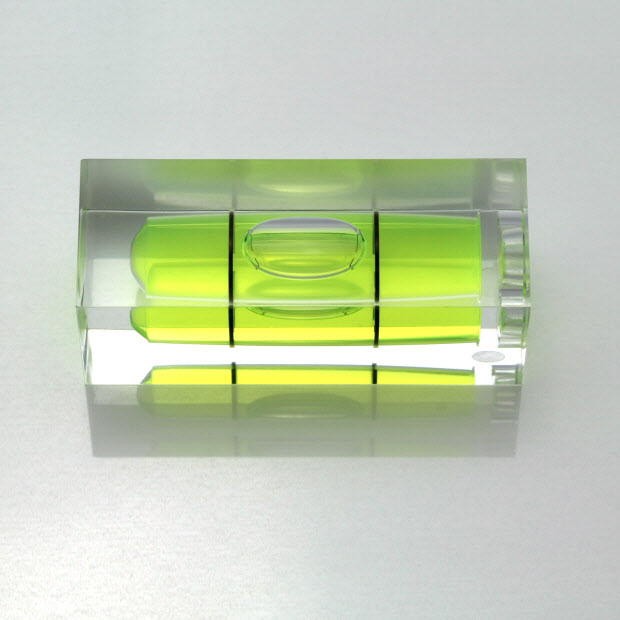

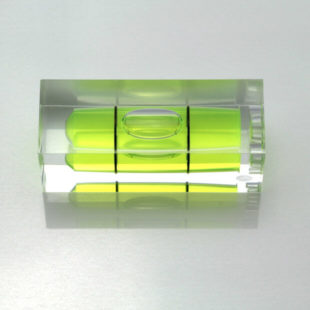

Vials » Plastic Square Section Vials » S40 - Plastic sq. section vial, 40x15x15mm, green liquid

Product Datasheet (pdf 69 KB) S40 – Plastic sq. section vial, 40x15x15mm, green liquid

S40 – Plastic sq. section vial, 40x15x15mm, green liquid
S40 – Plastic sq. section vial, 40x15x15mm, green liquid
S40 – Plastic sq. section vial, 40x15x15mm, green liquid
123

Features

  • High quality PMMA, scratch free, high optical clarity material
  • Precision machined internal radius
  • Black lines, internally fitted gives minimal parallax error
  • Yellow/Green liquid

Applications

  • Construction levels
  • Levelling tools

Product Specification

Parameter Value Unit
Length 40 mm
Width 15 mm
Height 15 mm
Sensitivity Per 2mm 38 minutes
Bubble Size 11.5 mm
Line Spacing 13 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour Clear -

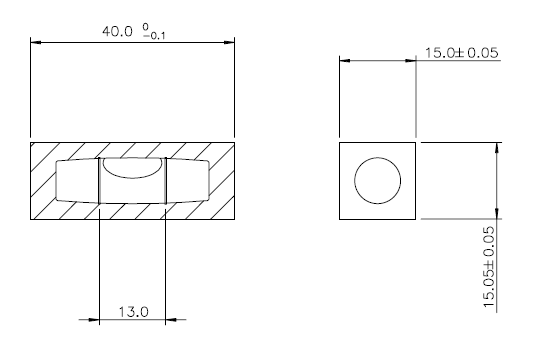

Dimension Value Unit
Length 40 mm
Width 15 mm
Height 15 mm
Weight 9.5 Grams
Parameter Value Unit
Operational Temperature Range -10 to 65 °C
Storage Temperature Range -20 to 70 °C
