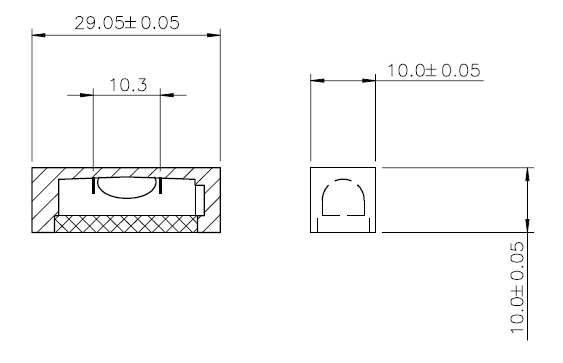

Product Drawing (pdf 54 KB) SC29 – Plastic sq. section vial, 29x10x10mm, green liquid

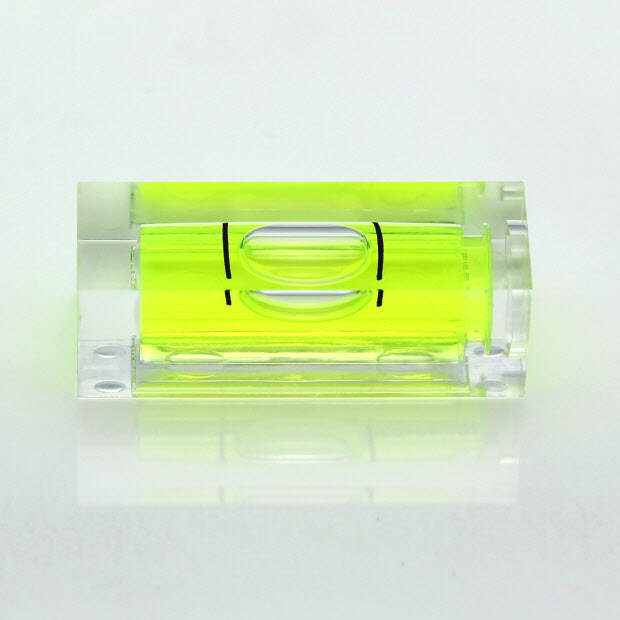

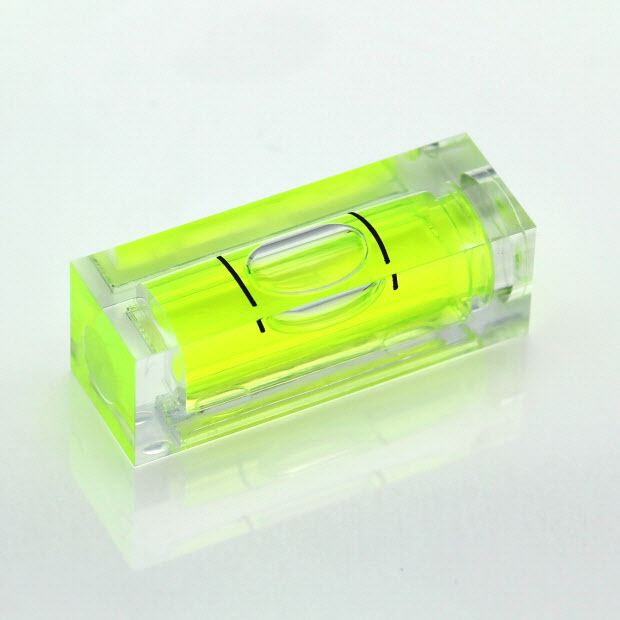

SC29 – Plastic sq. section vial, 29x10x10mm, green liquid
SC29 – Plastic sq. section vial, 29x10x10mm, green liquid
12

Features

  • High quality PMMA, scratch free, high optical clarity material
  • Precision machined internal radius
  • Internally printed Black lines
  • Minimal parallax error
  • Yellow/Green liquid

Applications

  • Construction levels
  • Levelling tools

Product Specification

Parameter Value Unit
Length 29 mm
Width 10 mm
Height 10 mm
Sensitivity Per 2mm 46 minutes
Bubble Size 8.7 mm
Line Spacing 10.3 mm
Line Colour Black -
Liquid Colour Yellow/Green -
Backing Colour Clear -
Dimension Value Unit
Length 29 mm
Width 10 mm
Height 10 mm
Weight 2.89 Grams
Parameter Value Unit
Operational Temperature Range -10 to 65 °C
Storage Temperature Range -20 to 70 °C
