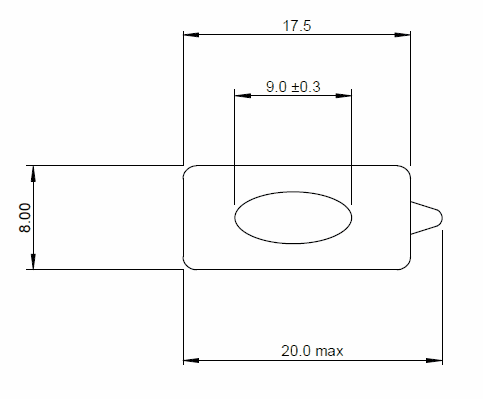

Product Drawing (pdf 47 KB) 5610/101 – Ground opto electronic sensor vial 17.5 x Ø8mm, sensitivity 10’/2mm
Features
- Precision grinding gives linear bubble movement
- Ultra clean internally to eliminate particulate contamination.
- Very low hysteresis
- Excellent temperature performance
- Automated production and inspection
- Low cost and high performance
Applications
- Self levelling construction laser levels
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 8 | mm |
Shoulder Length | 17.5 | mm |
Overall Length | 20 | mm |
Sensitivity Per 2mm | 10 | minutes |
Bubble Size | 9 | mm |
Dimension | Value | Unit |
---|---|---|
Diameter | 8 | mm |
Shoulder Length | 17.5 | mm |
Overall Length | 20 | mm |
Weight | 1.5 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 70 | °C |
Storage Temperature Range | -40 to 80 | °C |
