Vials » Sensor Vials » 5794/101 - Ground opto electronic sensor vial 24 x Ø8mm, sensitivity 4'/2mm

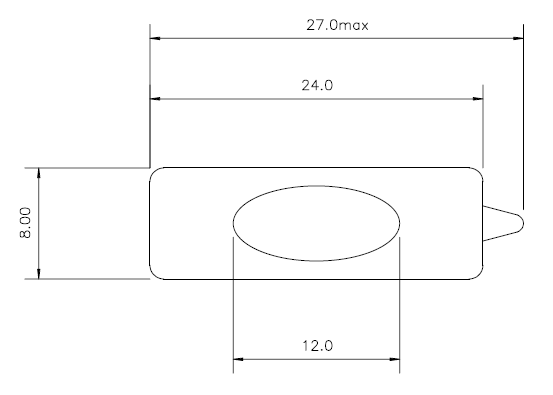

Product Drawing (pdf 29 kB) 5794/101 – Ground opto electronic sensor vial 24 x Ø8mm, sensitivity 4’/2mm

Features

  • Precision grinding gives linear bubble movement
  • Ultra clean internally to eliminate particulate contamination.
  • Very low hysteresis
  • Excellent temperature performance
  • Automated production and inspection
  • Low cost and high performance

Applications

  • Self levelling construction laser levels

Product Specification

Parameter Value Unit
Diameter 8 mm
Shoulder Length 24 mm
Overall Length 27 mm
Sensitivity Per 2mm 4 minutes
Bubble Size 12 mm
Dimension Value Unit
Diameter 8 mm
Shoulder Length 24 mm
Overall Length 27 mm
Weight 1.5 Grams
Parameter Value Unit
Operational Temperature Range -20 to 70 °C
Storage Temperature Range -40 to 80 °C
