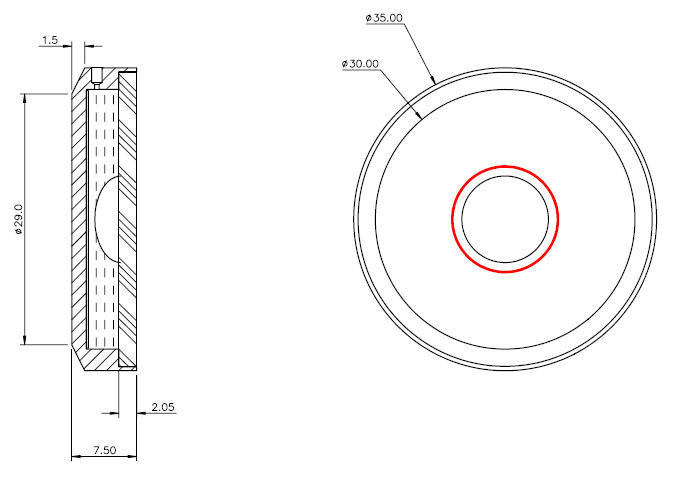

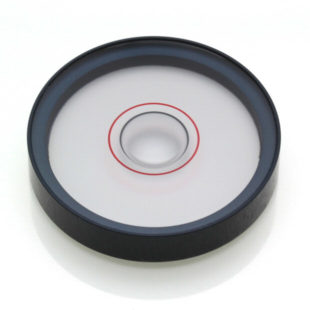

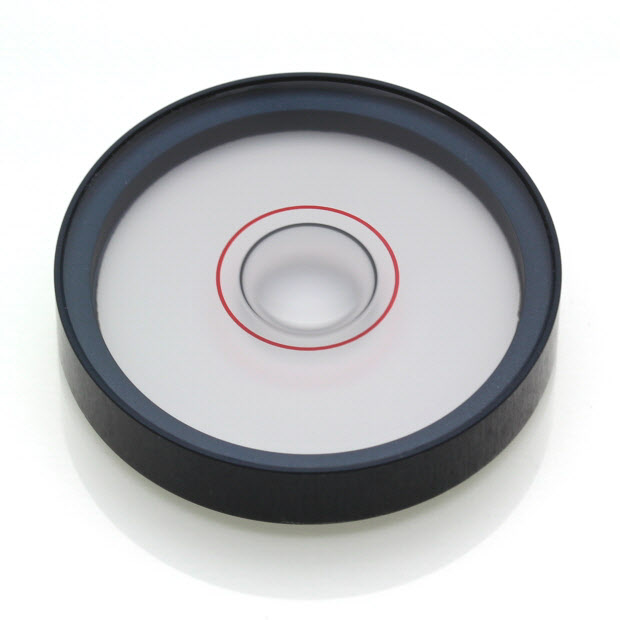

Product Drawing (pdf 82 KB) 5823/1 – Circular vial, Ø35 x 7.5mm, sens 10’/2mm
Features
- Sensitivity 10' per 2mm bubble movement
- Precision ground glass top lens
- Black anodised Aluminium body
- High contrast bubble gives excellent visibility
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- White Backing
- Wide operational temperature range
Product Specification
Parameter | Value | Unit |
---|---|---|
Diameter | 35 | mm |
Height | 7.5 | mm |
Sensitivity | 10 | minutes per 2mm |
Backing Colour | White | - |
Bubble Size | 10 | mm |
Ring Diameter | 12.5 | mm |
Ring Colour | Red | - |
Finish | Black Anodised | - |
Liquid Colour | Clear | - |
Lens Material | Glass | - |
Dimension | Value | Unit |
---|---|---|
Diameter | 35 | mm |
Height | 7.5 | mm |
Weight | 12.79 | Grams |
Parameter | Value | Unit |
---|---|---|
Operational Temperature Range | -20 to 65 | °C |
Storage Temperature Range | -30 to 70 | °C |
