2 Axis Levels - Cross Levels

Cross Level - Cross Levels

A wide range of dual axis spirit levels to suit most surface levelling applications. These cross levels can be screwed onto a product or used free standing. We also manufacture custom sizes on request to suit a particular application or to match an existing specification. These levels are all set level with reference to the underside reference surface of the level housing.

Applications and Features

  • Sensitivity from 10" (0.05mm/m) to 1° (17.5mm/m)
  • Wide range of sizes, finishes and mounting options
  • Manufactured and tested to the highest quality
  • Custom types designed and produced for OEM's

= sort ascending / descending (hold 'shift' and click another heading for multiple sorting)

Part No. Image Length
(mm)
Width
(mm)
Height
(mm)
Sensitivity
Per Division
Sensitivity
Unit
Hole Centres
(mm)
Case Material Price
(ex VAT)

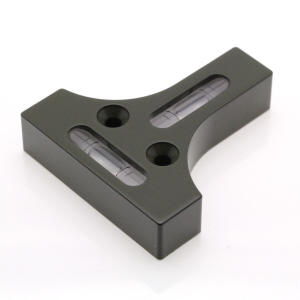

T20B T20B - Cross Level - Cross Levels
57.15 50.8 12.7 240 4 minutes 17.78 Aluminium From $39.20
Buy
T20 T20 - Cross Level - Cross Levels
57.15 50.8 12.7 240 4 minutes 17.78 Aluminium From $42.60
Buy
T10B T10B - Cross Level - Cross Levels
31.8 25.4 7 1560 26 minutes 12.2 Aluminium From $10.07
Buy

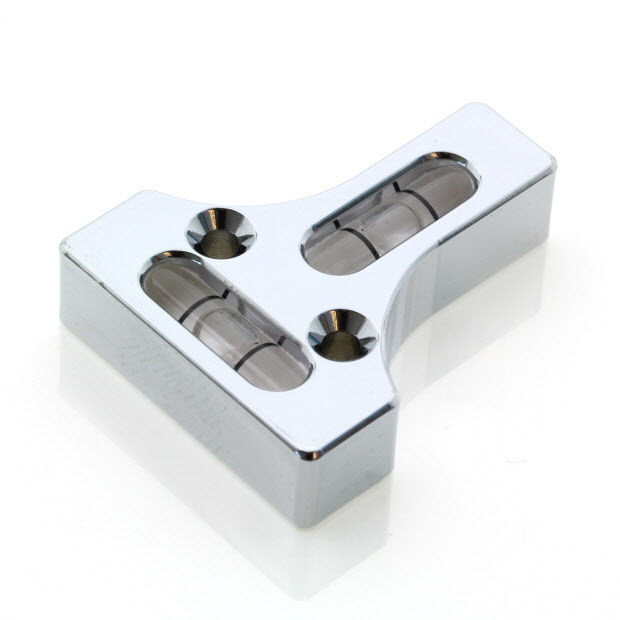

T10C T10C - Cross Level - Cross Levels
31.8 25.4 7 1560 26 minutes 12.2 Aluminium From $10.81
Buy

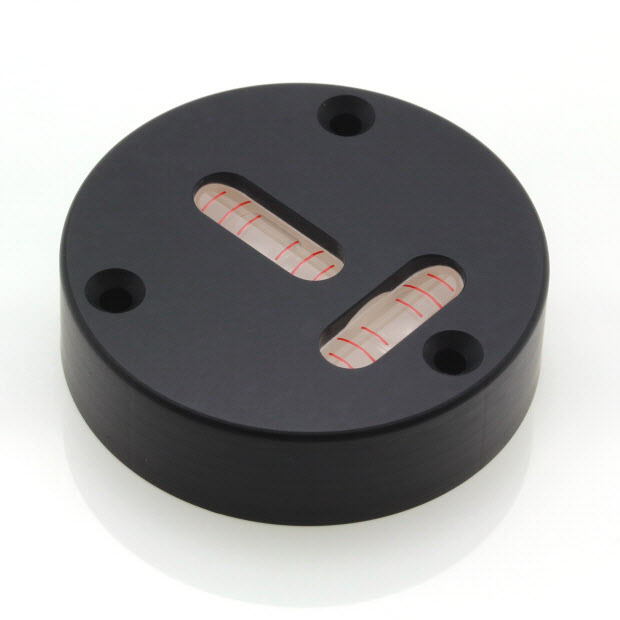

CT40B/1 CT40B/1 - Cross Level - Cross Levels
40 40 11 206.3 3.5 minutes Ø32 PCD Aluminium From $39.20
Buy
CT40B/2 CT40B/2 - Cross Level - Cross Levels
40 40 11 412.6 6.9 minutes Ø32 PCD Aluminium See details
T60 T60 - Cross Level - Cross Levels
60 44.8 13 2400 40 minutes 25 ABS From $0.85
Buy

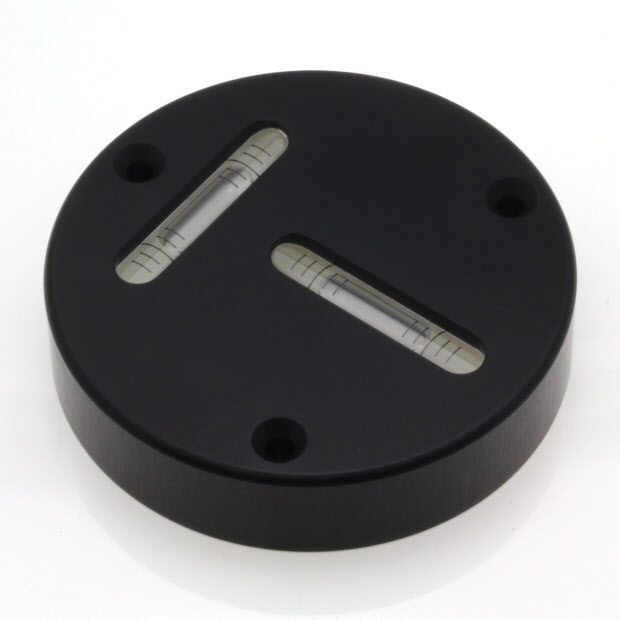

CT80/0.3 CT80/0.3 - Cross Level - Cross Levels
80 80 18 61.9 0.3 mm/m Ø66 PCD Aluminium From $79.70
Buy
CT80/0.1 CT80/0.1 - Cross Level - Cross Levels
80 80 18 20.5 0.1 mm/m Ø66 PCD Aluminium From $97.90
Buy
LT80/0.4 LT80/0.4 - Cross Level - Cross Levels
80 80 20 82.4 0.4 mm/m 24 Cast Iron From $123.50
Buy
LT80/0.1 LT80/0.1 - Cross Level - Cross Levels
80 80 20 20.5 0.1 mm/m 24 Cast Iron From $131.60
Buy
LT80/0.02 LT80/0.02 - Cross Level - Cross Levels
80 80 20 4 0.02 mm/m 24 Cast Iron From $197.10
Buy
LT80/0.05 LT80/0.05 - Cross Level - Cross Levels
80 80 20 10.4 0.05 mm/m 24 Cast Iron From $157.50
Buy

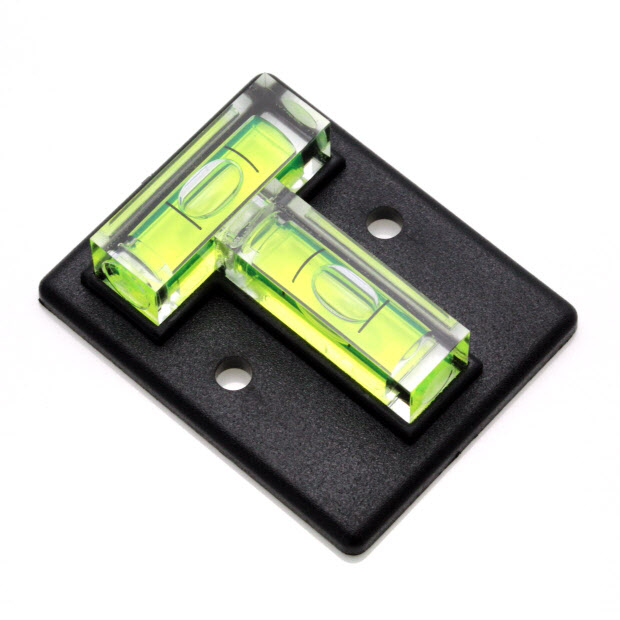

T50 T50 - Cross Level - Cross Levels
49.5 39.7 13 2400 40 minutes 25.8 ABS From $2.17
Buy
