Surface Mounted Circular Levels

Surface Mounted Circular Level

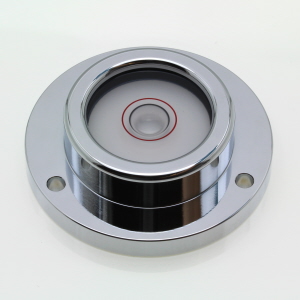

These mounted circular levels can be used free standing, or mounted to a reference surface with the three screw holes provided. They are set level wth reference to the bottom surface of the precision machined housing. When the level is on a perfectly level surface the bubble will be central to the centering circle within 0.5mm tolerance. Some of the levels have plastic vials which are lower cost and virtually unbreakable, and some utilise glass vials which give a better appearance, and higher accuracy.

As well as the range shown below we can also manufacture these levels to suit a particular application or to match an existing specification. They can be purchased online in small quantities, or for larger volumes, or ongoing OEM requirements please contact us for pricing. These levels are designed and manufactured in our UK factory to guarantee the quality and accuracy.

= sort ascending / descending (hold 'shift' and click another heading for multiple sorting)

Part No. Image Diameter
(mm)
Height
(mm)
Sensitivity Sensitivity
Unit
Vial Type Liquid Colour Price
$ (ex VAT)
CG80/10DEG CG80/10DEG - Surface Mounted Circular Level
80 17 36000 10 degrees per 6.5mm Glass Clear From $37.91
Buy
CG70B/7 CG70B/7 - Surface Mounted Circular Level
69.6 17.7 420 7 minutes per 2mm Glass Clear From $32.80
Buy
CP35B CP35B - Surface Mounted Circular Level
35 11.5 2400 40 minutes per 2mm Acrylic Clear From $7.55
Buy
CP35 CP35 - Surface Mounted Circular Level
35 11.5 3400 40 minutes per 2mm Acrylic Clear From $7.94
Buy
CP32B CP32B - Surface Mounted Circular Level
31.75 12 2040 34 minutes per 2mm Acrylic Clear From $4.96
Buy
CP32 CP32 - Surface Mounted Circular Level
31.75 12 2040 34 minutes per 2mm Acrylic Clear From $5.46
Buy
CP30B CP30B - Surface Mounted Circular Level
30 10 2040 34 minutes per 2mm Acrylic Clear From $4.91
Buy
CP30 CP30 - Surface Mounted Circular Level
30 10 2040 34 minutes per 2mm Acrylic Clear From $5.40
Buy
CP27B CP27B - Surface Mounted Circular Level
26.7 10.9 2040 34 minutes per 2mm Acrylic Clear From $4.30
Buy
CP27 CP27 - Surface Mounted Circular Level
26.7 10.9 2040 34 minutes per 2mm Acrylic Clear From $4.79
Buy
CP25B CP25B - Surface Mounted Circular Level
25 11 2040 34 minutes per 2mm Acrylic Clear From $4.16
Buy
CP25 CP25 - Surface Mounted Circular Level
25 11 2040 34 minutes per 2mm Acrylic Clear From $4.66
Buy
CP20B CP20B - Surface Mounted Circular Level
20 10 3180 53 minutes per 2mm Acrylic Clear From $4.07
Buy
CP20 CP20 - Surface Mounted Circular Level
20 10 3180 53 minutes per 2mm Acrylic Clear From $4.58
Buy
CG50B CG50B - Surface Mounted Circular Level
50 15 720 12 minutes per 2mm Glass Clear From $15.08
Buy
CG50 CG50 - Surface Mounted Circular Level
50 15 720 12 minutes per 2mm Glass Clear From $15.41
Buy
CG40B CG40B - Surface Mounted Circular Level
40 12.5 720 12 minutes per 2mm Glass Clear From $10.84
Buy
CG40 CG40 - Surface Mounted Circular Level
40 12.5 720 12 minutes per 2mm Glass Clear From $11.09
Buy
CG35B CG35B - Surface Mounted Circular Level
35 11.5 600 10 minutes per 2mm Glass Clear From $9.20
Buy
CG35 CG35 - Surface Mounted Circular Level
35 11.5 600 10 minutes per 2mm Glass Clear From $9.53
Buy
CG32B CG32B - Surface Mounted Circular Level
31.75 12 1200 20 minutes per 2mm Glass Clear From $6.59
Buy
CG32 CG32 - Surface Mounted Circular Level
31.75 12 1200 20 minutes per 2mm Glass Clear From $7.04
Buy
CG30B CG30B - Surface Mounted Circular Level
30 10 1200 20 minutes per 2mm Glass Clear From $6.57
Buy
CG30 CG30 - Surface Mounted Circular Level
30 10 1200 20 minutes per 2mm Glass Clear From $7.01
Buy
CG27B CG27B - Surface Mounted Circular Level
26.7 10.9 1200 20 minutes per 2mm Glass Clear From $6.16
Buy
CG27 CG27 - Surface Mounted Circular Level
26.7 10.9 1200 20 minutes per 2mm Glass Clear From $6.59
Buy
CG25B CG25B - Surface Mounted Circular Level
25 11 1200 20 minutes per 2mm Glass Clear From $6.05
Buy
CG25 CG25 - Surface Mounted Circular Level
25 11 1200 20 minutes per 2mm Glass Clear From $6.48
Buy
CG20B CG20B - Surface Mounted Circular Level
20 14 1500 25 minutes per 2mm Glass Clear From $6.09
Buy
CG20 CG20 - Surface Mounted Circular Level
20 14 1500 25 minutes per 2mm Glass Clear From $6.52
Buy
CG70/10DEG CG70/10DEG - Surface Mounted Circular Level
69.6 17.7 18000 5 degrees per 6.5mm Glass Clear From $34.72
Buy
CG70/5DEG CG70/5DEG - Surface Mounted Circular Level
69.6 17.7 3600 1 degree per 2.5mm Glass Clear See details
CG70/7 CG70/7 - Surface Mounted Circular Level
69.6 17.7 420 7 minutes per 2mm Glass Clear From $33.21
Buy
CG60/4DEG CG60/4DEG - Surface Mounted Circular Level
60 16 3600 1 degree per 2.5mm Glass Clear From $28.77
Buy
CG60/2DEG CG60/2DEG - Surface Mounted Circular Level
60 16 1800 30 minutes per 2.5mm Glass Clear From $28.31
Buy
5229/4 5229/4 - Surface Mounted Circular Level
100 20 3600 1 degree per 3.2mm Acrylic Clear From $42.04
Buy
5229/3 5229/3 - Surface Mounted Circular Level
100 20 7200 2 degrees per 5mm Acrylic Clear From $42.04
Buy
CP50B CP50B - Surface Mounted Circular Level
50 15 2220 37 minutes per 2mm Acrylic Clear From $12.11
Buy
CP50 CP50 - Surface Mounted Circular Level
50 15 2220 37 minutes per 2mm Acrylic Clear From $12.50
Buy
CP40B CP40B - Surface Mounted Circular Level
40 12.5 1800 30 minutes per 2 mm Acrylic Clear From $9.10
Buy
CP40 CP40 - Surface Mounted Circular Level
40 12.5 1800 30 minutes per 2mm Acrylic Clear From $9.38
Buy
CG60B CG60B - Surface Mounted Circular Level
60 17 600 10 minutes per 2mm Glass Clear From $21.74
Buy
5229/5 5229/5 - Surface Mounted Circular Level
100 20 3600 1 degree per 3.2mm PMMA Clear From $42.04
Buy
5229/2 5229/2 - Surface Mounted Circular Level
100 20 3600 1 degree per 5mm PMMA Clear From $42.04
Buy
5229/1 5229/1 - Surface Mounted Circular Level
100 20 3600 1 degree per 1.7mm PMMA Clear From $42.04
Buy
CG60 CG60 - Surface Mounted Circular Level
60 17 600 10 minutes per 2mm Glass Clear From $22.15
Buy
