Instrument Screw On Levels

Instrument Screw On Levels

A wide range of instrument type spirit levels to suit most levelling applications. These levels can be screwed onto a product or used free standing. We also manufacture custom sizes on request to suit a particular application or to match an existing specification. These levels are all set level with reference to the underside reference surface of the level housing.

Applications and Features

  • Sensitivity from 10" (0.05mm/m) to 1° (17.5mm/m)
  • Wide range of sizes, finishes and mounting options
  • Adjustable or fixed spirit levels (set level to bottom face)
  • Manufactured and tested to the highest quality
  • Custom types designed and produced for OEM's

= sort ascending / descending (hold 'shift' and click another heading for multiple sorting)

Part No. Image Length
(mm)
Width
(mm)
Height
(mm)
Sensitivity
Per Division
Sensitivity
Unit
Hole Centres
(mm)
Case Material Finish Price
$ (ex VAT)

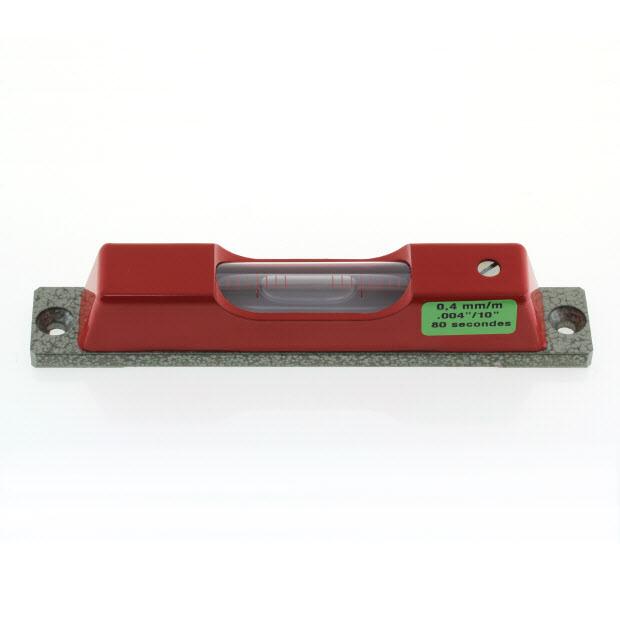

130/1 130/1 - Instrument Screw On Levels
120 20 21 86.3 1 mm/m 110 Steel Grey/Green Hammer From $54.20
Buy
130/0.4 130/0.4 - Instrument Screw On Levels
120 20 21 82.4 0.4 mm/m 110 Steel Grey/Green Hammer From $57.00
Buy
130/0.05 130/0.05 - Instrument Screw On Levels
120 20 21 10.4 0.05 mm/m 110 Steel Grey/Green Hammer From $84.70
Buy
130/0.1 130/0.1 - Instrument Screw On Levels
120 20 21 20.5 0.1 mm/m 110 Steel Grey/Green Hammer From $69.60
Buy
PSL/0.4 PSL/0.4 - Instrument Screw On Levels
120 25 22 4 0.4 mm/m 110 Mild Steel Black zinc plated and red powder coat From $100.90
Buy
PSL/0.1 PSL/0.1 - Instrument Screw On Levels
120 25 22 4 0.1 mm/m 110 Mild Steel Black zinc plated and red powder coat From $105.60
Buy
PSL/0.05 PSL/0.05 - Instrument Screw On Levels
120 25 22 4 0.05 mm/m 110 Mild Steel Black zinc plated and red powder coat From $111.00
Buy
PSL/0.02 PSL/0.02 - Instrument Screw On Levels
120 25 22 4 0.02 mm/m 110 Mild Steel Black zinc plated and red powder coat From $117.90
Buy
5525/2 5525/2 - Instrument Screw On Levels
90 15.9 15.9 120 2 Minutes 75.7 Brass Black stove Enamel From $42.00
Buy

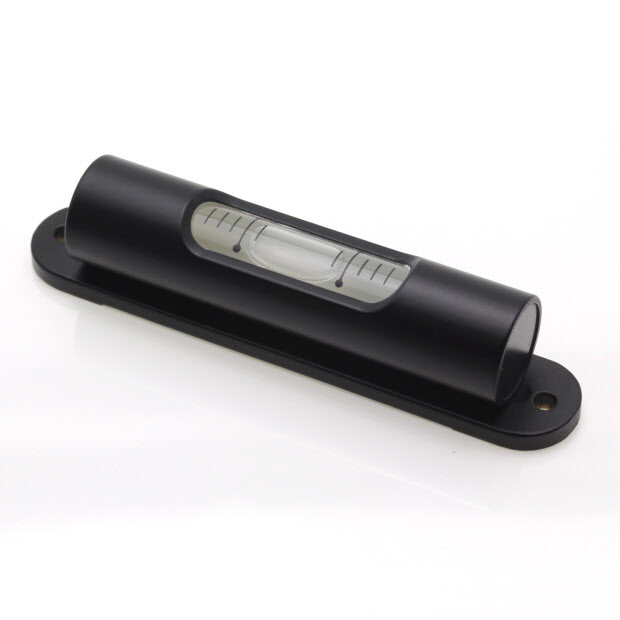

TL85 TL85 - Instrument Screw On Levels
85.5 15.8 18.8 60 1 minute 76.2 Aluminium Black anodised From $35.70
Buy
5525/1 5525/1 - Instrument Screw On Levels
90 15.9 15.9 360 6 Minutes 75.7 Brass Black stove Enamel From $42.00
Buy
GPL15 GPL15 - Instrument Screw On Levels
73 14.3 14.4 2700 45 minutes 65.1 Aluminium Black Anodised From $6.71
Buy
GP15/60 GP15/60 - Instrument Screw On Levels
73 14.3 14.4 60 60 seconds 65.1 Aluminium Black anodised From $13.08
Buy
5745/1 5745/1 - Instrument Screw On Levels
140 40 40 4 0.02 mm/m See details
EL50/0.4 EL50/0.4 - Instrument Screw On Levels
50 12 12 82.4 0.4 mm/m 42 Aluminium Black anodised From $22.30
Buy
EL50/2 EL50/2 - Instrument Screw On Levels
50 12 12 88.6 2 mm/m 42 Aluminium Black anodised From $21.30
Buy
EL50/1 EL50/1 - Instrument Screw On Levels
50 12 12 86.3 1 mm/m 42 Aluminium Black anodised From $21.30
Buy
TL50/2 TL50/2 - Instrument Screw On Levels
50 12.7 15.6 120 2 minutes 43 Aluminium Black anodised From $26.50
Buy
TL50/1 TL50/1 - Instrument Screw On Levels
50 12.7 15.6 60 1 minute 43 Aluminium Black anodised From $26.50
Buy

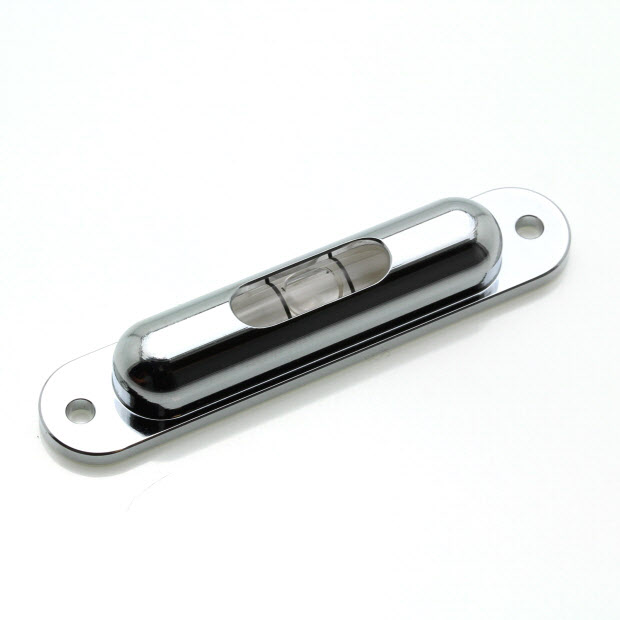

LM9C LM9C - Instrument Screw On Levels
55 11 8.3 2040 34 minutes 47.6 Aluminium Chrome Plated From $7.36
Buy
GP15P GP15P - Instrument Screw On Levels
73 14.3 14.4 900 15 minutes 65.1 Aluminium Black Anodised From $9.32
Buy
EL80/0.1 EL80/0.1 - Instrument Screw On Levels
80 15.8 15.8 20.5 0.1 mm/m 70 Aluminium Black Anodised From $50.10
Buy
EL80/0.4 EL80/0.4 - Instrument Screw On Levels
80 15.8 15.8 82.4 0.4 mm/m 70 Aluminium Black Anodised From $38.90
Buy
EL80/1 EL80/1 - Instrument Screw On Levels
80 15.8 15.8 206.3 1 mm/m 70 Aluminium Black Anodised From $38.80
Buy

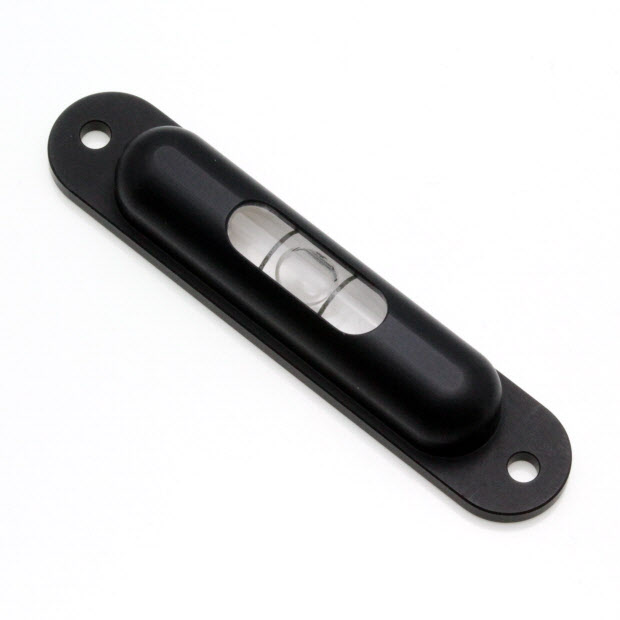

LM9P LM9P - Instrument Screw On Levels
55 11 8.3 2040 34 minutes 47.6 Aluminium Black Anodised From $7.15
Buy
