SCA121T Alternative

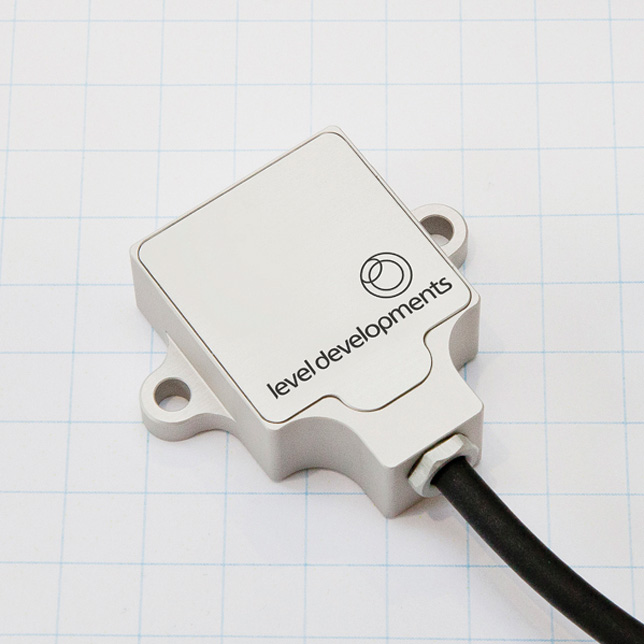

SCA121T Inclinometer Sensor replacement

Murata (VTI) recently announced the discontinuation of their SCA121T range of inclinometer sensor modules, with a last order date of September 2016. Fortunately Level Developments can offer a direct replacement for these products with our DAS series of sensors. These utilise the same sensing element, the same performance specifications and have the same footprint and mounting, but also have some distinct advantages:

  • CE Certification
  • IP67 seal rating
  • Buffered output (helps to protect sensing element from ESD)
  • 4 pole analogue 3Hz filter on each output
  • 2m screened flexible cable with PUR jacket
These parts are available from stock, or on short lead-times and can be purchased in small quantities from our online store, or in larger quantities by contacting our sales team. For reference the equivalent part numbers are shown here to the left.

= sort ascending / descending (hold 'shift' and click another heading for multiple sorting)

Part No. Image Size
(LxWxH mm)		 No of Axis Range
(°)		 Output Type Resolution (°) Accuracy (°)
(20°C)		 Supply Voltage
Min - Max (V)		 Seal Rating Price
£ (ex VAT)
DAS-90-R DAS-90-R - SCA121T Inclinometer Sensor replacement
43.5 x46 x13.5 2 ±90 0.5 to 4.5V 0.003 ±0.39 (Up to 45°) 5.00 - 5.00 IP67 See details
DAS-10-R DAS-10-R - SCA121T Inclinometer Sensor replacement
43.5 x46 x13.5 2 ±10 0.5 to 4.5V 0.001 ±0.10 5.00 - 5.00 IP67 See details
DAS-90-A DAS-90-A - SCA121T Inclinometer Sensor replacement
43.5 x46 x13.5 2 ±90 0.5 to 4.5V 0.003 ±0.15 (Up to 45°) 7 - 32 IP67 From £88.00
Buy
DAS-30-R DAS-30-R - SCA121T Inclinometer Sensor replacement
43.5 x46 x13.5 2 ±30 0.5 to 4.5V 0.002 ±0.22 5 - 5 IP67 From £88.00
Buy
DAS-30-A DAS-30-A - SCA121T Inclinometer Sensor replacement
43.5 x46 x13.5 2 ±30 0.5 to 4.5V 0.002 ±0.07 7 - 32 IP67 From £88.00
Buy
DAS-10-A DAS-10-A - SCA121T Inclinometer Sensor replacement
43.5 x46 x13.5 2 ±10 0.5 to 4.5V 0.001 ±0.07 7 - 32 IP67 From £88.00
Buy
