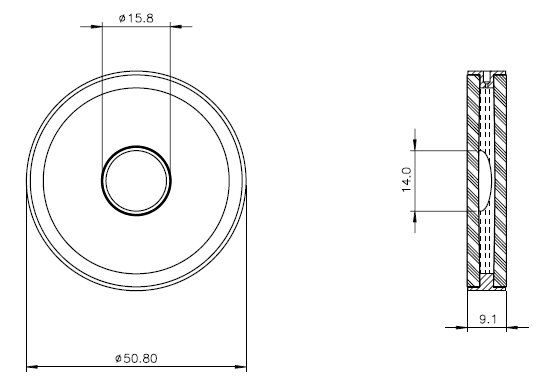

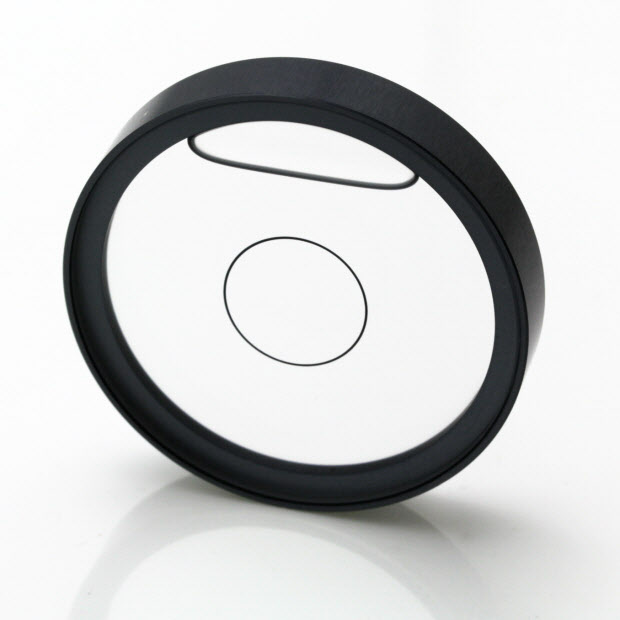

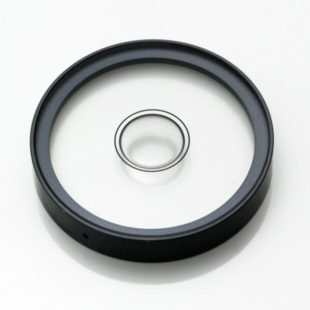

Product Drawing (pdf 37 KB) 5563/1 – Circular vial, Ø2", transparent, 8’/2mm
Features
- Sensitivity 8' per 2mm bubble movement
- Precision ground glass top lens
- Black anodised Aluminium body
- High contrast bubble gives excellent visibility
- Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
- Transparent backing (lightly frosted for better light diffusion)
- Wide operational temperature range
Product Specification
| Parameter | Value | Unit |
|---|---|---|
| Diameter | 50.8 | mm |
| Height | 9.1 | mm |
| Sensitivity | 8 | minutes per 2mm |
| Backing Colour | Transparent | - |
| Bubble Size | 14 | mm |
| Ring Diameter | 15.8 | mm |
| Ring Colour | Black | - |
| Finish | Black Anodised | - |
| Liquid Colour | Clear | - |
| Lens Material | Glass | - |
| Dimension | Value | Unit |
|---|---|---|
| Diameter | 50.8 | mm |
| Height | 9.1 | mm |
| Weight | 40 | Grams |
| Parameter | Value | Unit |
|---|---|---|
| Operational Temperature Range | -20 to 65 | °C |
| Storage Temperature Range | -30 to 70 | °C |
