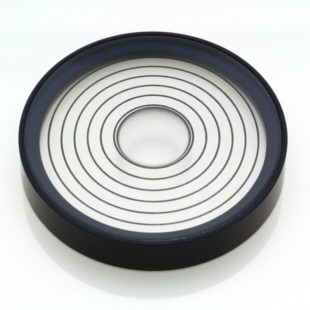

Circular Levels » Glass Circular Vials » 5673/1 - Circular vial, Ø50.8, sensitivity 1° per 2.5mm

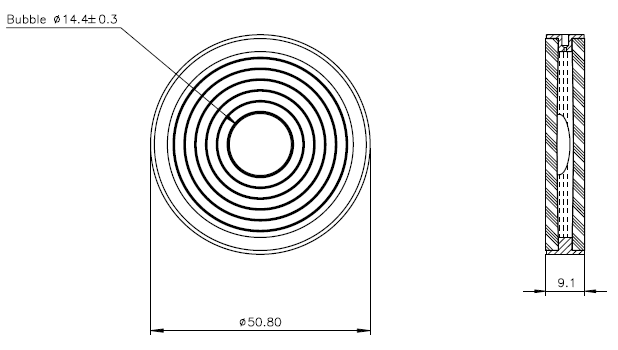

Product Drawing (pdf 139 kB) 5673/1 – Circular vial, Ø50.8, sensitivity 1° per 2.5mm

Features

  • Sensitivity 47' minutes (1 degree per 2.5mm division)
  • Precision ground glass top lens
  • Black anodised Aluminium body
  • High contrast bubble gives excellent visibility
  • Markings printed on inside surface of glass - Can't be rubbed off and minimise parallax error
  • Transparent
  • Wide operational temperature range

Product Specification

Parameter Value Unit
Diameter 50.8 mm
Height 9.1 mm
Sensitivity 1 degree per 2.5mm division
Backing Colour Transparent -
Bubble Size 14.4 mm
Ring Diameter 15.3 mm
Ring Colour Black -
Finish Black Anodised -
Liquid Colour Clear -
Lens Material Glass -
Dimension Value Unit
Diameter 50.8 mm
Height 9.1 mm
Weight 37.33 Grams
Parameter Value Unit
Operational Temperature Range -20 to 65 °C
Storage Temperature Range -30 to 70 °C
